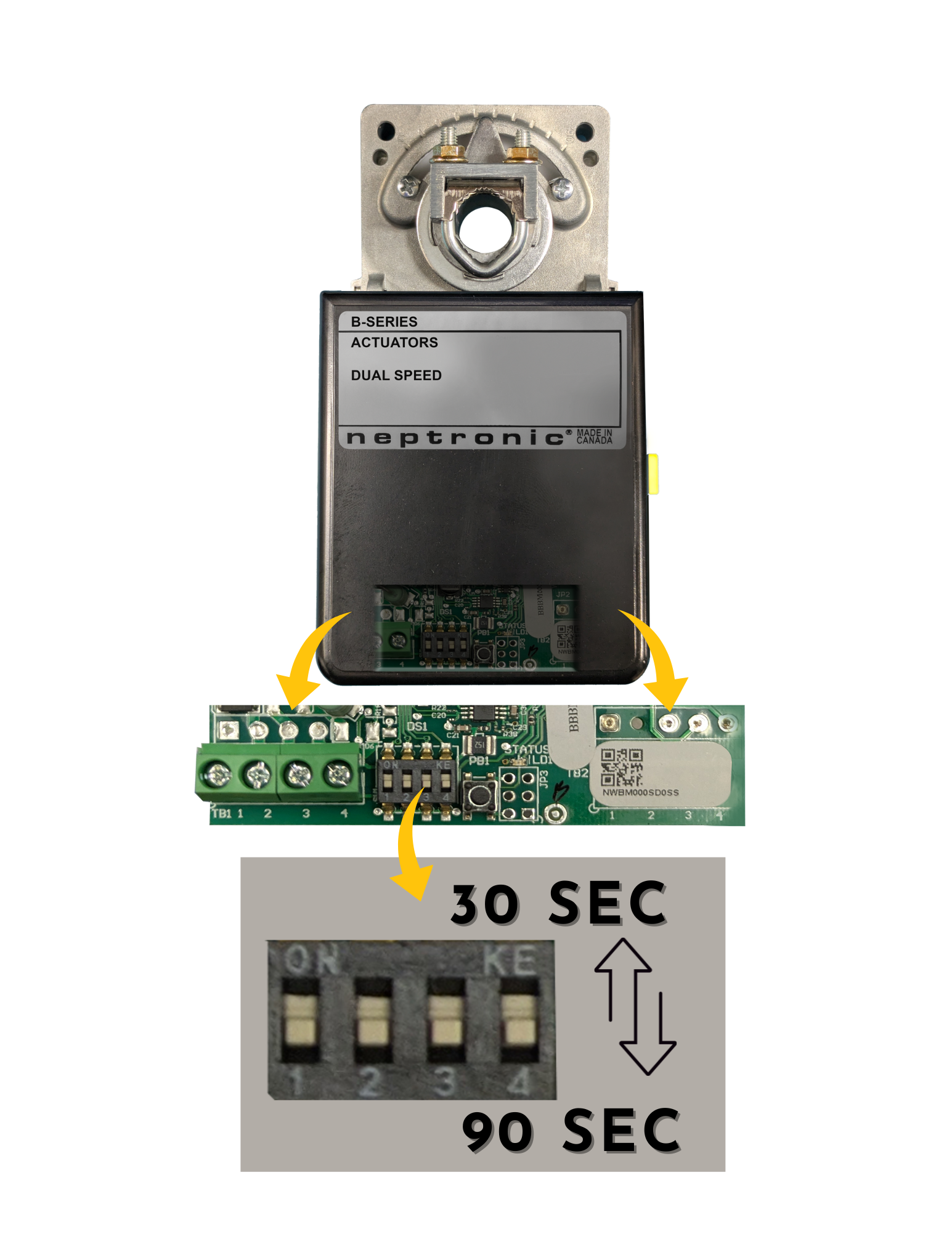

Dual Speed Actuator

• 80-110 sec. or 30 sec. run time
• DIP Switch selectable

• Two adjustable switches for enhanced flexibility.
• Add-on module that comes complete with cables and a BX conduit connector for easy installation.

These new switches are designed to replace the following older actuators, which featured two fixed mechanical switches:

BT020S, BT080S, BM080S, BT120S, BT180S, BT220S, BT280S, BM020S.

To replace the older actuators, simply use our standard actuator nomenclature and add the AC2-B designation.

For example: The old BT020S is replaced by BT000S + AC2-B.

We believe these upgrades will provide greater functionality and convenience for your HVAC systems.

We’re proud to unveil the FD5-B 5K Ohms Feedback Potentiometer, an enhanced add-on module designed to improve your system's performance.

Key features:

• Add-on module that comes complete with cables and a BX conduit connector for easy installation.

This new potentiometer is designed to replace the following older actuators:

BT0005S, BT065S, BT105S, BT165S, BT205S, BT265S.

To replace any of the old actuators, simply use our standard product and add the FD5-B.

For example: The old BT000S is replaced by BT000S + FD5-B.

Upgrade to the FD5-B for improved feedback and greater efficiency in your system!
