Details

Power & Communication

24Vac or 24Vdc supply
Up to 2 RS-485 communication ports for BACnet MS/TP or Modbus RTU
BACnet® IP/Ethernet or Modbus TCP/IP
Set network settings via embedded WEB server
Provision for I/O expansion modules
Router functionality (optional)

Inputs & Outputs

10 Inputs

2 binary inputs
8 universal inputs

10 Outputs

6 binary outputs
4 analog outputs
Supervised manual override of outputs via local web page or local dip switches

Other

SD card slot for updates
USB port for 5 Vdc power supply
RJ45 Ethernet connection for IP and WEB services

Network Communication

BACnet MS/TP

MS/TP @ 9600, 19200, 38400 or 76800 bps
Automatic baud rate detection
Automatic device instance configuration

BACnet IP/Ethernet

All IP / Ethernet configuration via on board WEB page
Display device status including each available data point, in addition to the BACnet object interface.
Supports DHCP or fixed/static addressing

Modbus

Modbus @ 9600, 19200, 38400 or 57600 bps
RTU Slave, 8 bits (configurable parity and stop bits)
Connects to any Modbus master

Modbus TCP/IP

Connects to any Modbus TCP/IP master controller

Models

Pricing

Model

List
Price

Router

Display

Communication Ports

BACnet Ports

Modbus Ports

CMMB-IP	$ 1,138	-	-	1	1
CMMB-IP-L	$ 1,454	-	Yes	1	1
CMMB-IP-R1B	$ 1,774	Yes	-	1	-
CMMB-IP-R2B	$ 2,408	Yes	-	2	-
CMMB-IP-RL1B	$ 2,090	Yes	Yes	1	-
CMMB-IP-RL2B	$ 2,724	Yes	Yes	2	-

Details

Power & Communication

24Vac or 24Vdc supply
BACnet® MS/TP or Modbus RTU communication port (selectable)

Inputs & Outputs (Supervised)

CMMB100

Inputs: 8 universal

CMMB102

Inputs: 4 universal
Outputs (supervised): 2 universal & 2 binary

Installation

4 override switches to manually control each output (auto, forced on, or forced off) (CMMB102 series only)
LED status indication of each input and output
DIN rail mounting
Removable, non-strip, raising clamp terminals
Removable see-through panel for easy access to DIP switches

Network Communication

BACnet MS/TP or Modbus RTU (selectable via DIP switch)
Select MAC address via DIP switch or via network

BACnet

MS/TP @9600, 19200, 38400 or 76800 bps
Automatic baud rate detection
Automatic device instance configuration
Copy and broadcast configuration to other CMMB modules

Modbus RTU

Modbus RTU @9600, 19200, 38400 or 57600 bps
RTU Slave, 8 bits (configurable parity and stop bits)
Connects to any Modbus RTU master

Models

Pricing

CMMB100	$ 358	8	0
CMMB102	$ 370	4	4

Details

Power & Communication

24Vac or 30Vdc supply
BACnet® MS/TP or Modbus RTU communication port (selectable)

Inputs & Outputs (Supervised)

Inputs: 8 universal and 2 digital
Outputs (supervised): 4 analog and 6 digital

Installation

10 override switches to manually control each output (auto, forced on, or forced off)
LED status indication of each input and output
DIN rail mounting
Removable, non-strip, raising clamp terminals

Network Communication

BACnet MS/TP or Modbus RTU (selectable via DIP switch)
Select MAC address via DIP switch or via network

BACnet

MS/TP @9600, 19200, 38400 or 76800 bps
Automatic baud rate detection
Automatic device instance configuration
Copy and broadcast configuration to other CMMB modules

Modbus RTU

Modbus RTU @9600, 19200, 38400 or 57600 bps
RTU Slave, 8 bits (configurable parity and stop bits)
Connects to any Modbus RTU master

Models

Pricing

CMMB106	$ 554	10	10

Applications

Building Automation Systems I/O expansion
For additional inputs and outputs
Reduces unnecessary cost of additional components

Details

Power & Communication

120 Vac or 240 Vac (selectable)
2 auxiliary supply outputs (24 Vdc and 24 Vac)
BACnet® MS/TP communication port

Inputs & Outputs (Supervised)

2 universal inputs
2 digital outputs (277 Vac / 30A resistive | 240 Vac / 3/4HP)

Installation

2 override switches to manually control each output (auto, forced on, or forced off)
LED status indication of each input and output
DIN rail mounting
Removable, non-strip, raising clamp terminals

BACnet

MS/TP @9600, 19200, 38400 or 76800 bps
Automatic baud rate detection
Automatic device instance configuration
Copy and broadcast configuration to other other CMMB modules
Supervised outputs provide actual state including any manual overrides

Models

Pricing

CMMB1322	$ 714	2	2

Applications

Building Automation Systems I/O expansion
For additional inputs and outputs
Reduces unnecessary cost of additional components

Details

Power & Communication

24Vac or 24Vdc supply
BACnet® MS/TP or Modbus communication port (selectable)

Inputs & Outputs

30 universal inputs
4 universal outputs
4 analog outputs
12 binary outputs

Other

16-bit A/D Converter for greater resolution
Supports Pt1000 and Ni1000

Network Communication

BACnet® MS/TP or Modbus communication ports (selectable via DIP switch)
Select MAC address via DIP switch or via network

BACnet^@

MS/TP @ 9600, 19200, 38400, 76800 or 115000 bps
Automatic baud rate detection
Automatic device instance configuration
Improved BACnet Stack
Firmware upgradable via BACnet
Expansion slot for connection to Neptronic RPB BACnet Router

Modbus

Modbus @ 9600, 19200, 38400 or 57600 bps
RTU Slave, 8 bits (configurable parity and stop bits)
Connects to any Modbus master

Models

Pricing

CMMB1020 ***	$ 900	30	20

*** Coming soon

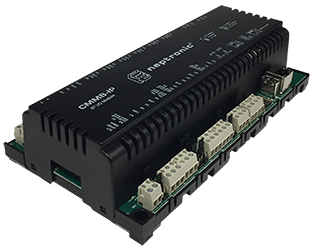

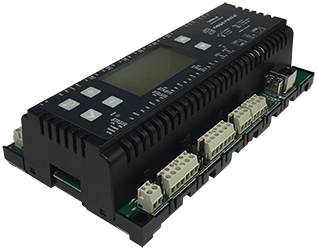

CMMB-IP - Ethernet I/O Module

CMMB-IP

BACnet I/O Board

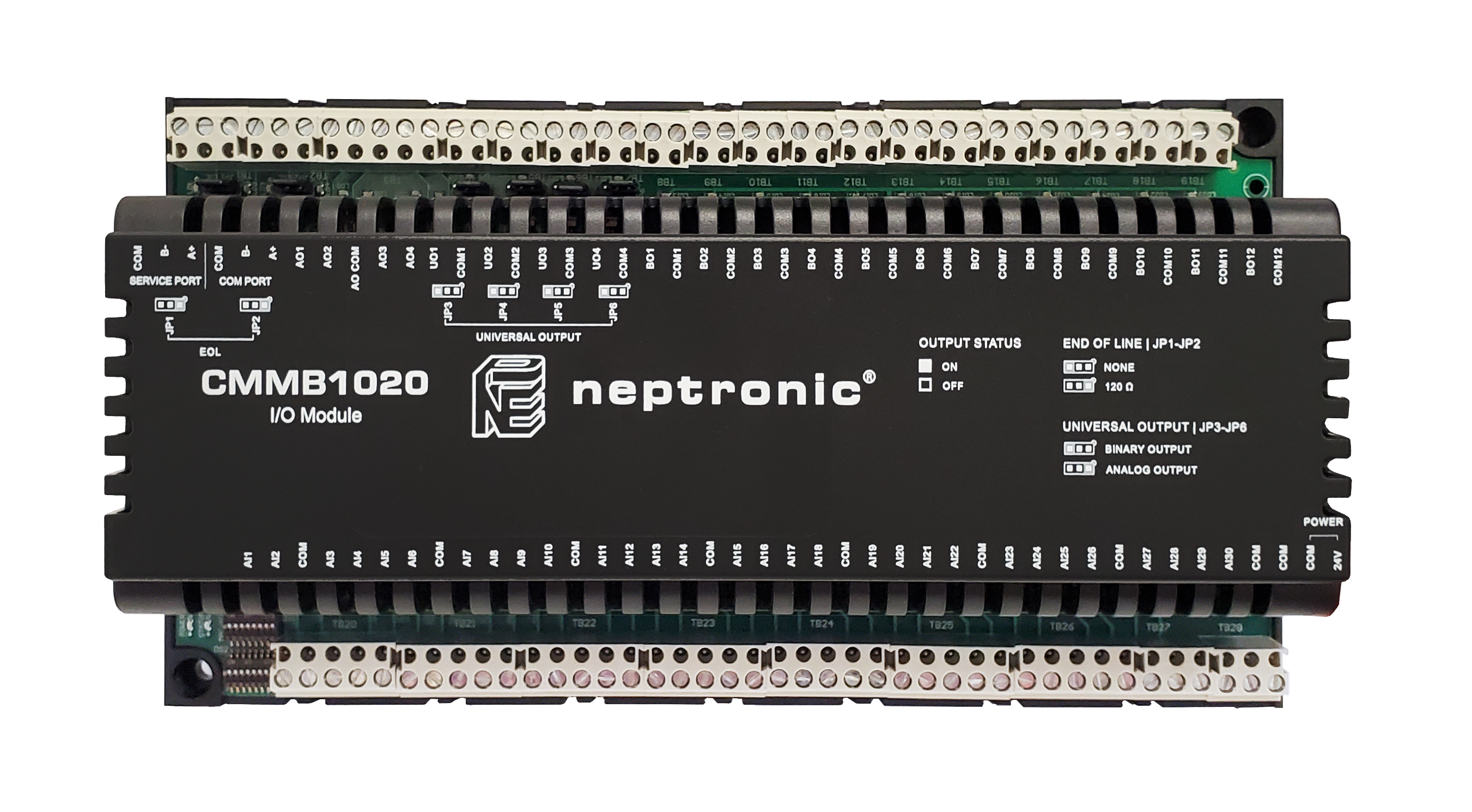

CMMB1020

Remote I/O Communication Module

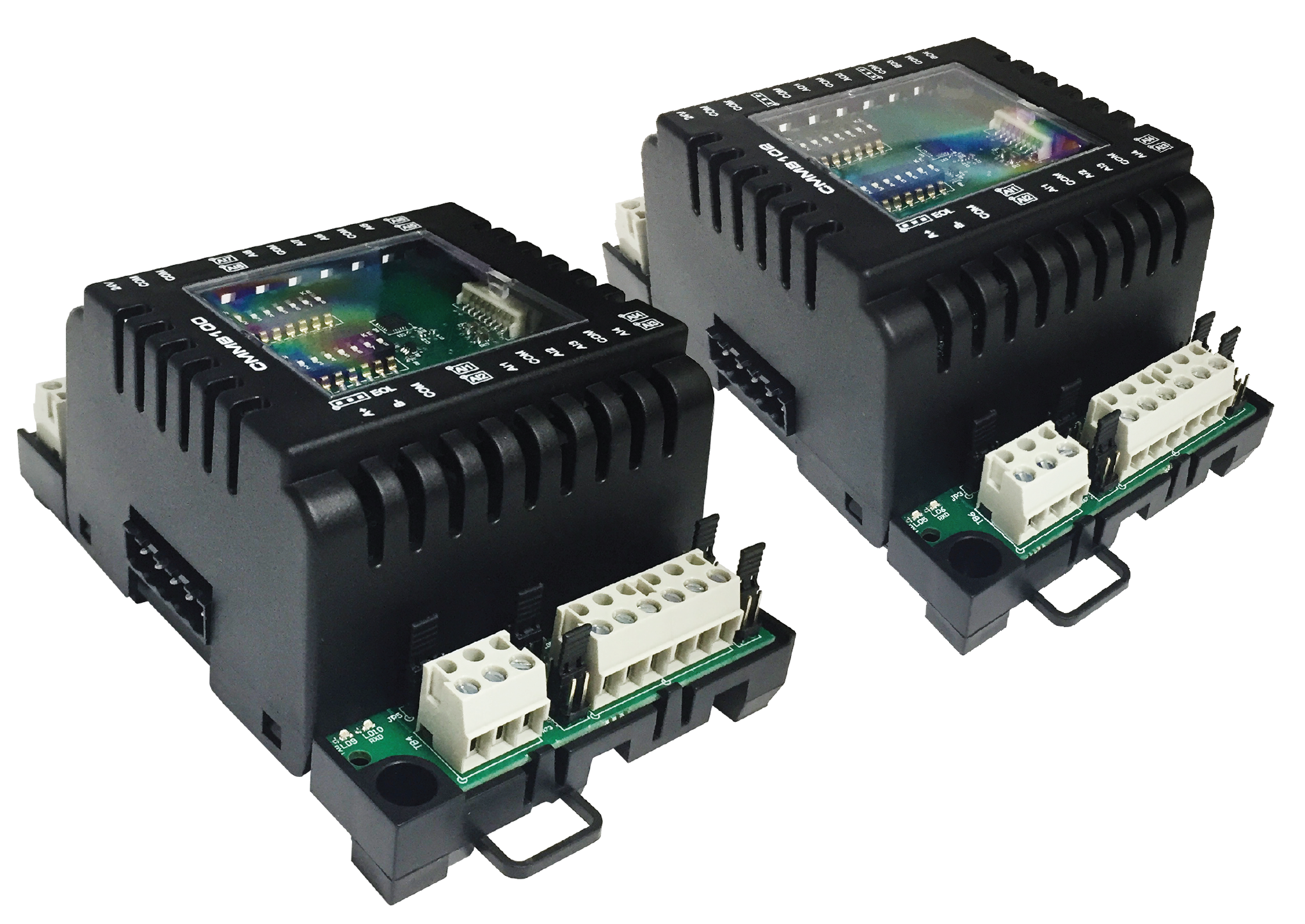

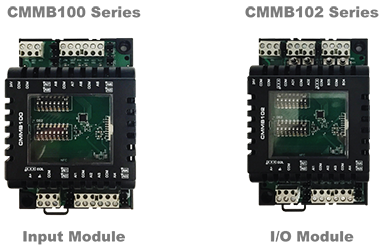

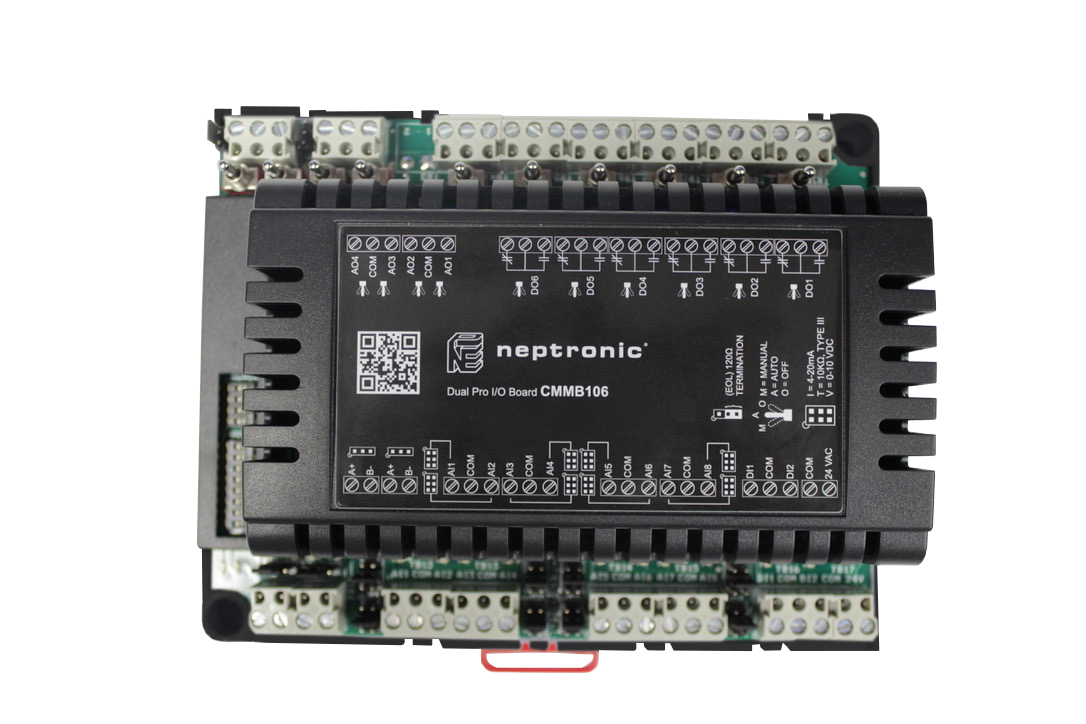

CMMB100/102

Dual Mini I/O Board

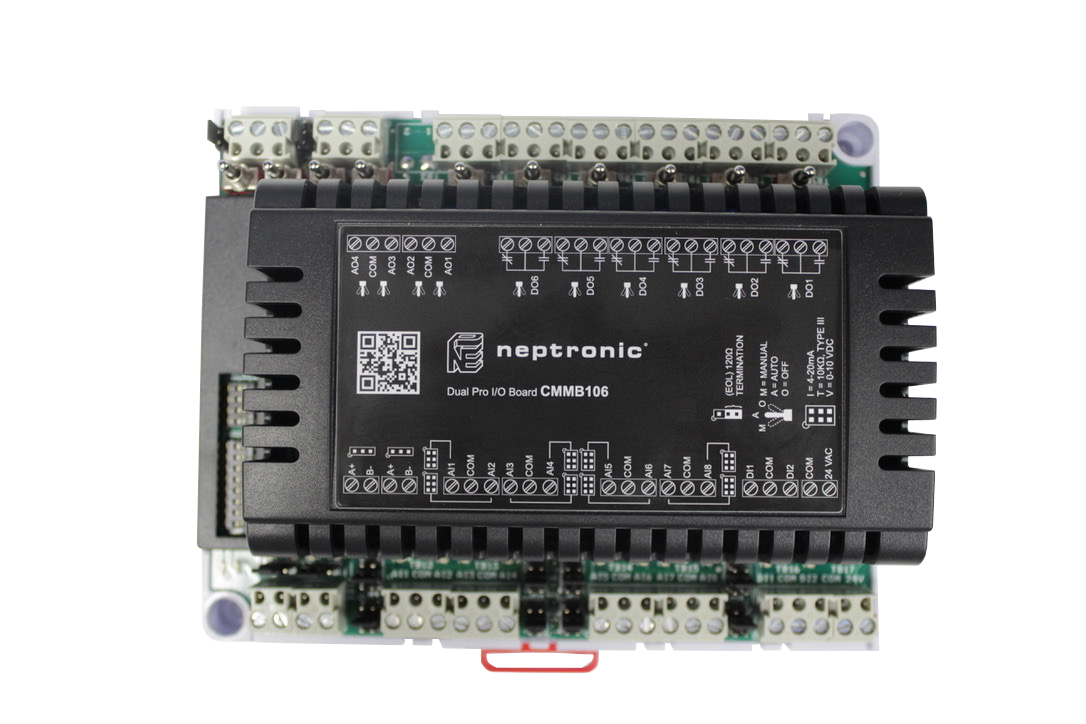

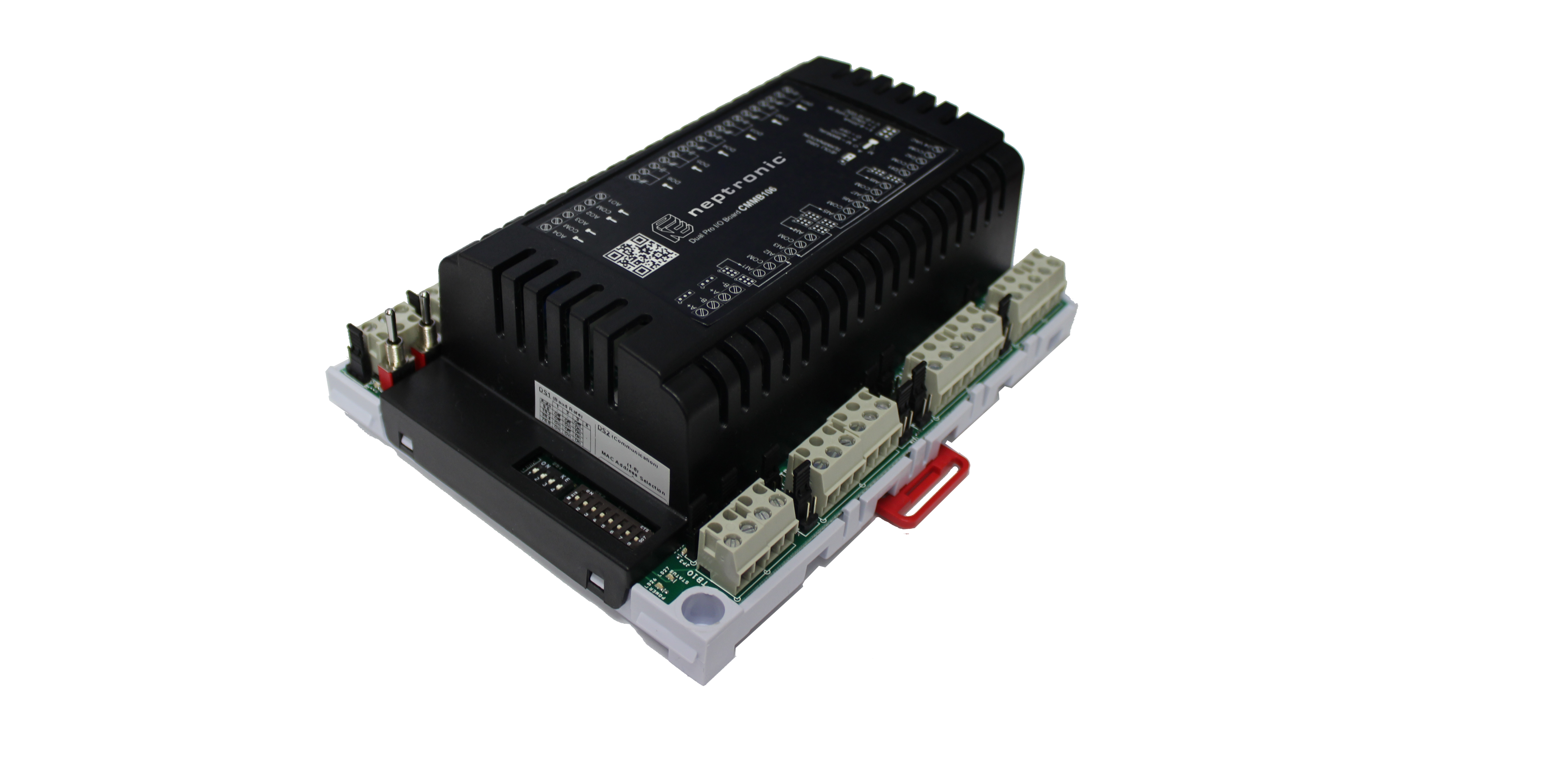

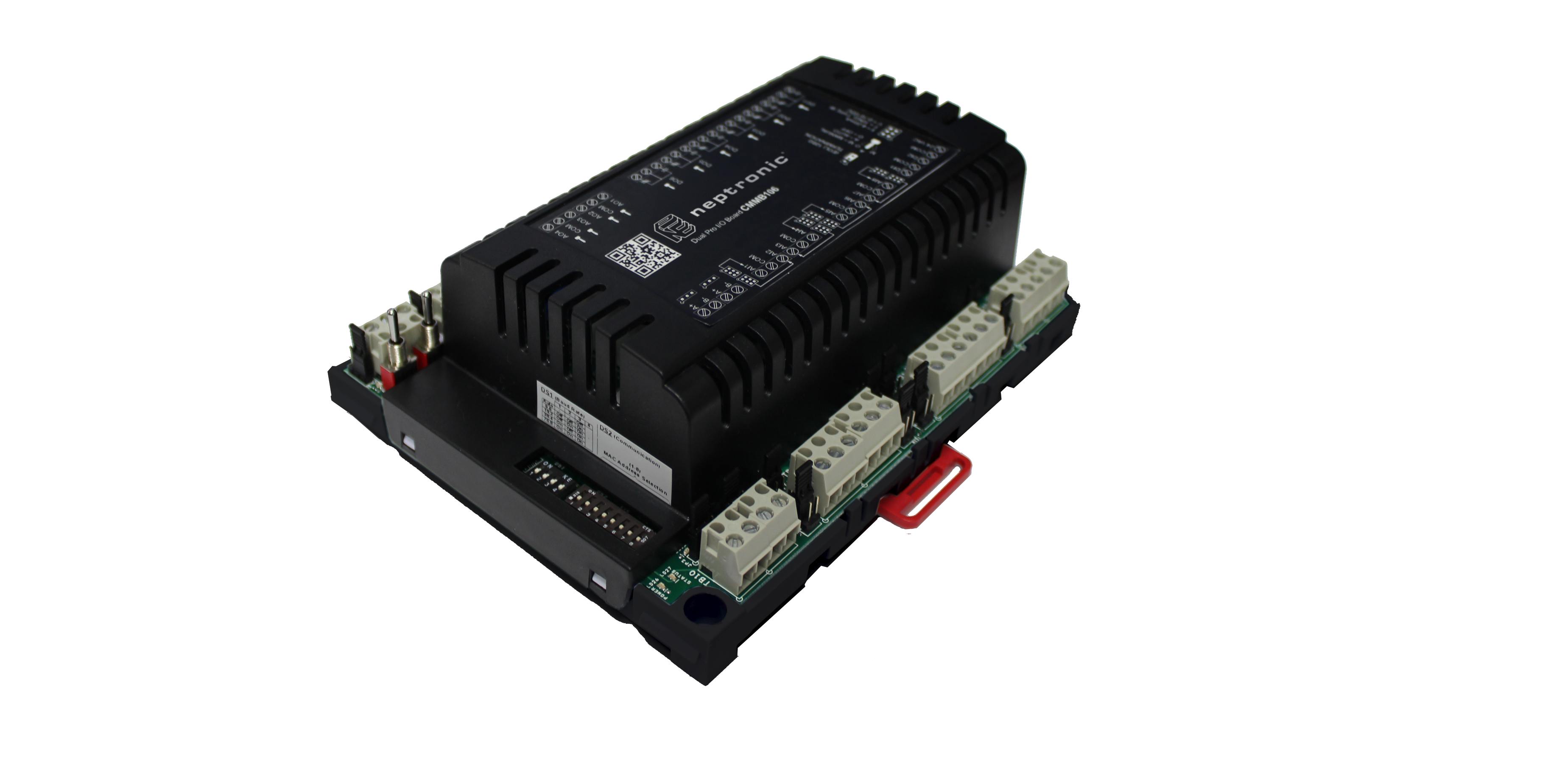

CMMB106

BACnet I/O Board

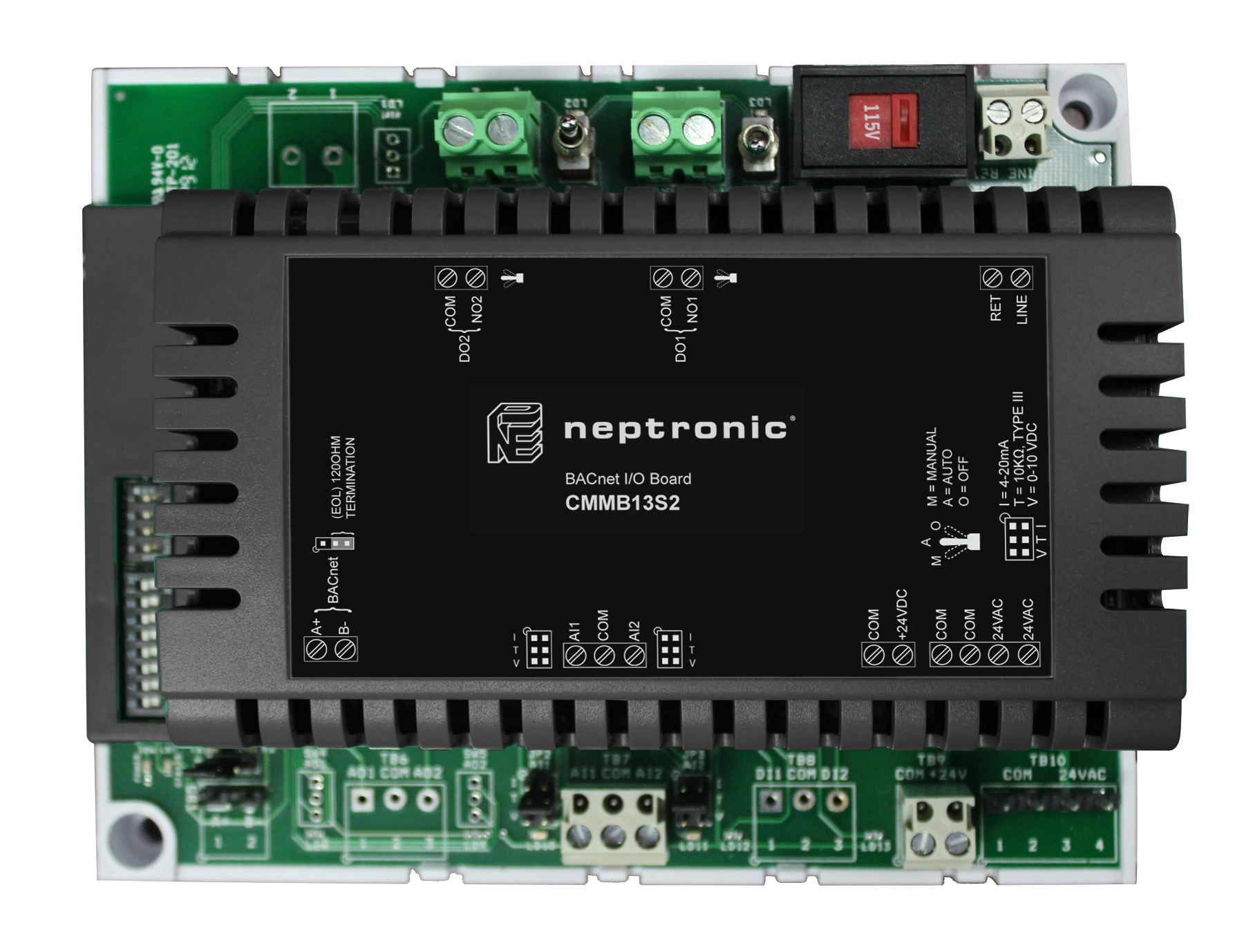

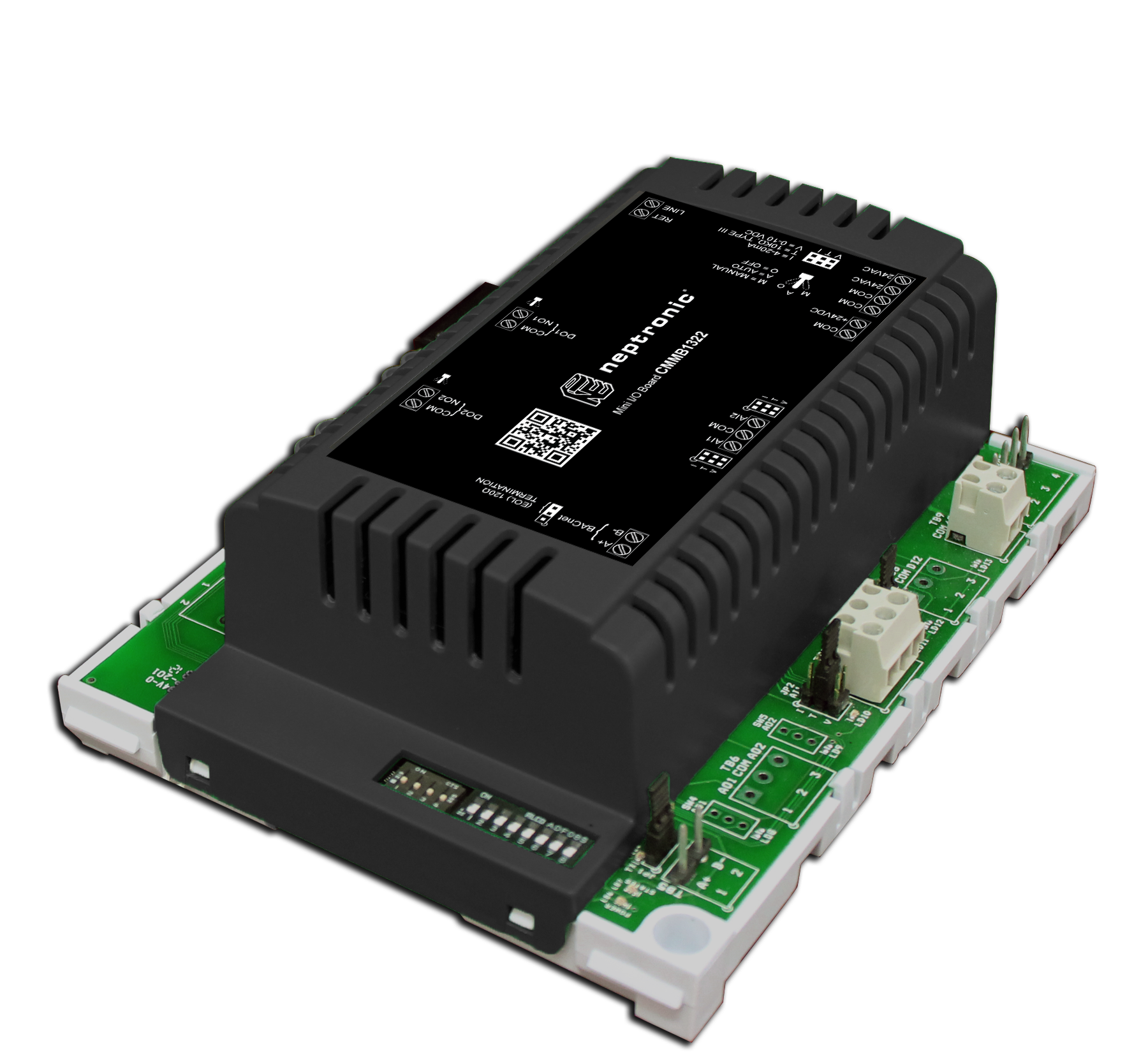

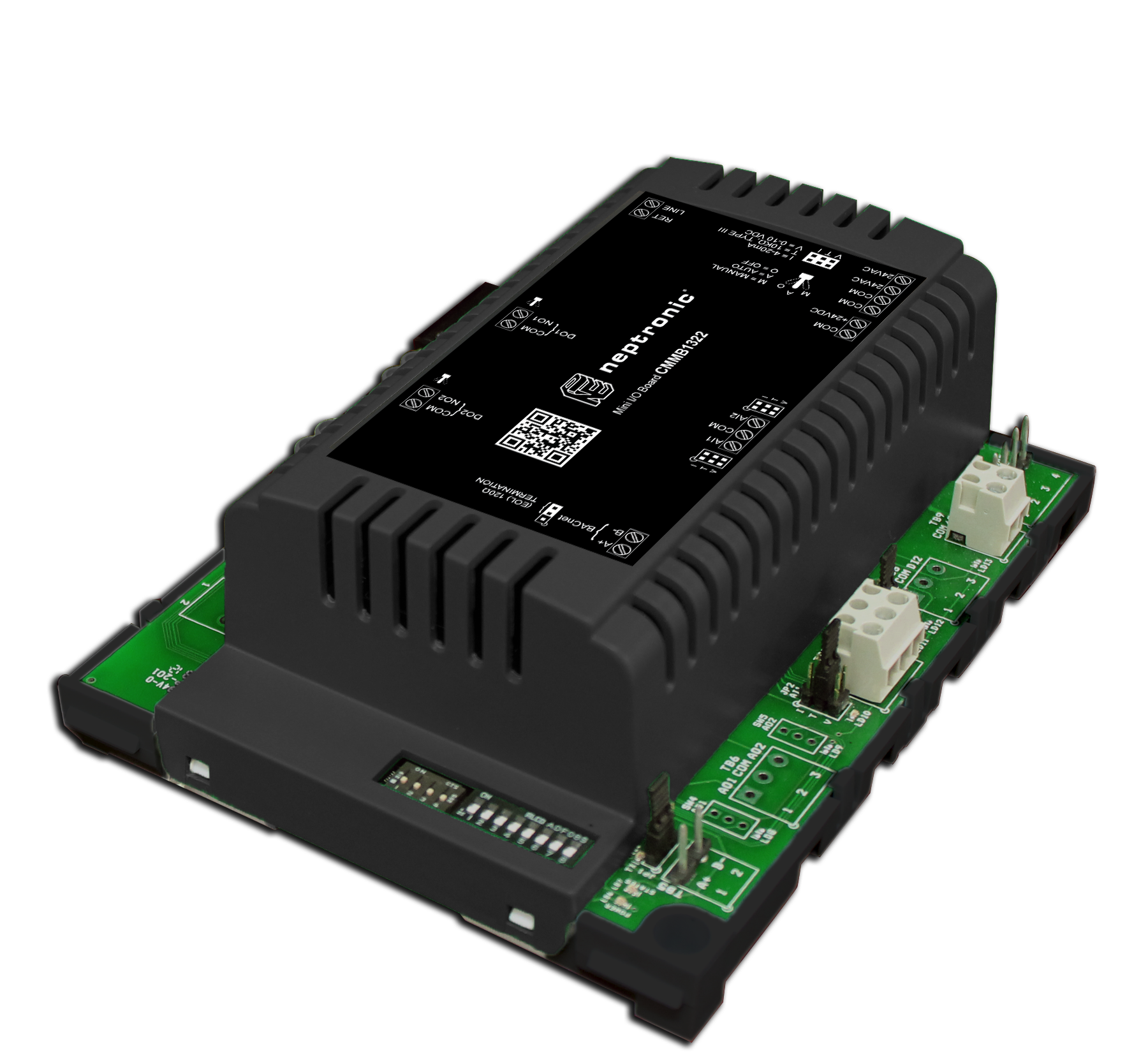

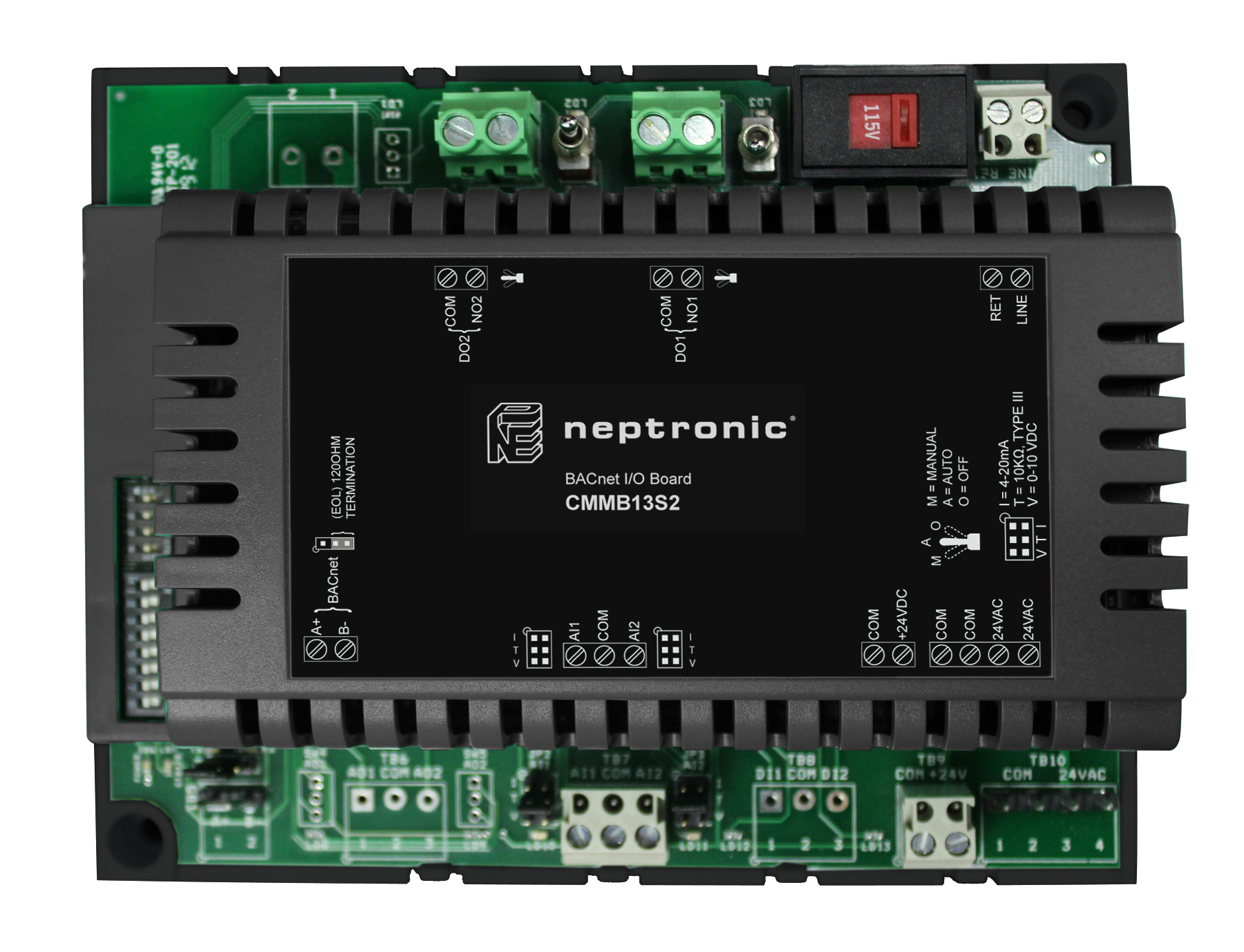

CMMB1322

BACnet I/O Board

Details

Models

Details

Models

Details

Models

Details

Models

Details

Models
