SKH4 - Atomizing High Pressure Humidifier

Overview

Capacities up to 2800 lb/hr (1250 L/hr)
Up to 4 zones
Installation in-duct or in-space

Distribution

Capacities up to 2800 lb/hr (1250 L/hr)
Up to 4 zones
Installation in-duct or in-space

Integrated, Multi-Platform Controller

Capacities up to 2800 lb/hr (1250 L/hr)
Up to 4 zones
Installation in-duct or in-space

Sensors and Controls

Higher energy conservation
Lower costs and higher values
Seamless integration and interoperability

Overview
Distribution
Integrated, Multi-Platform Controller
Humidity Sensors and Controls

Tech Time

English
SKH4 Brochure (60Hz)

SKH4 - Overview

Overview

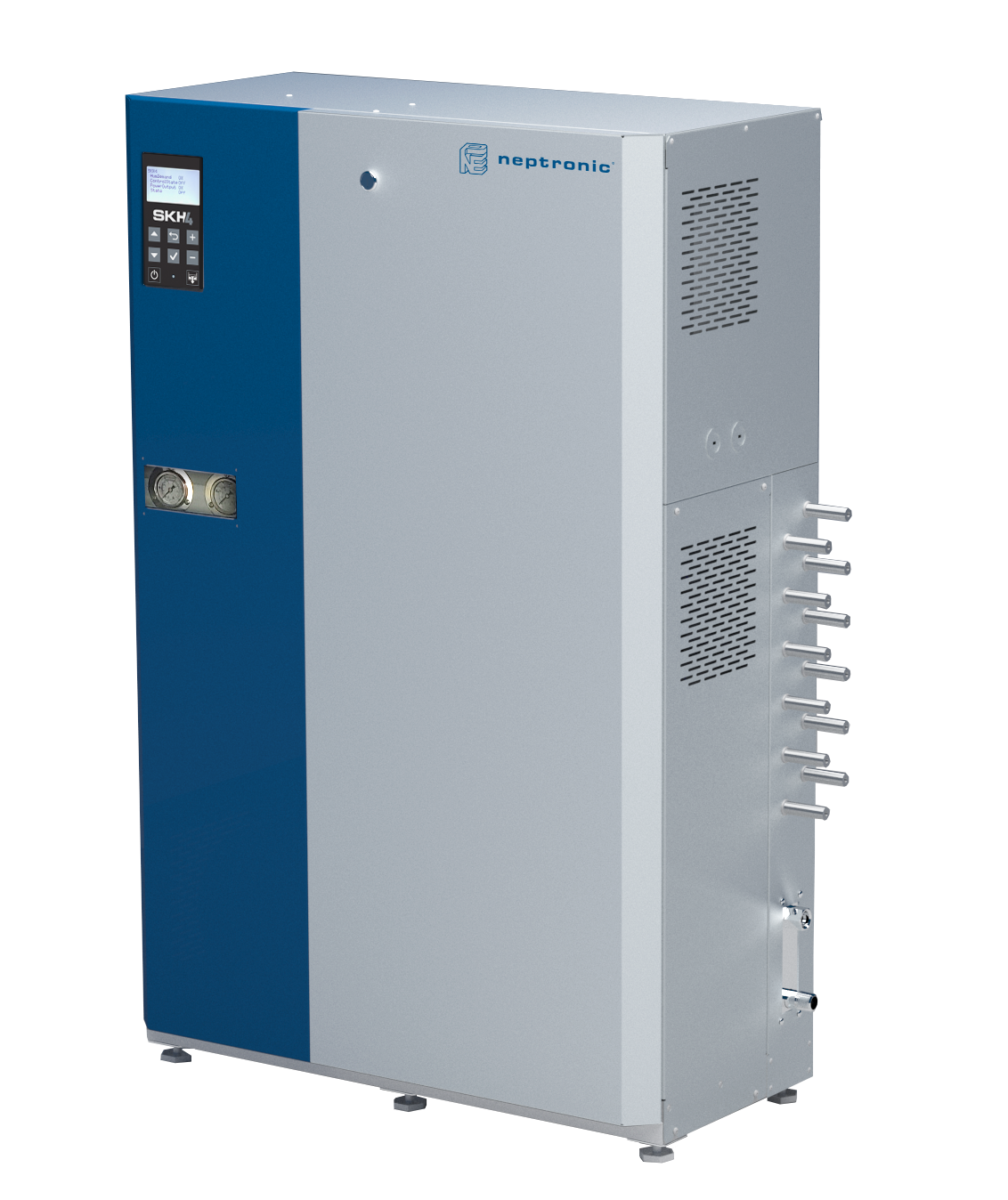

The SKH4 pumps water at high pressure of 1,000 psi (70 bar) through a series of nozzles to produce a fine mist. The adiabatic evaporation used by the SKH4 takes energy (heat) from the surrounding air to evaporate the fine mist (water droplets). This evaporative cooling/humidification process provides large output capacities of 210-2,800 lb/h (100-1,250 kg/h), that can be modulated with a high turndown ratio of 20 lb/h (10 kg/h).

The power consumption is very low for the high load of humidification produced, compared with isothermal technologies or even other adiabatic technologies such as compressed air. The range of the motor from 1/2 to 5HP (0.4 kW to 3.7 kW) can generate high-cost savings on the humidification process and on the cooling load of a space.

The SKH4’s controller can be configured with either temperature control for a cooling application or humidity control for humidification. It allows you to temper industrial and commercial indoor areas where heat build-ups could be unfavourable to occupants, production, and material goods.

Distribution takes place from the nozzles which are placed directly in space or inside a duct, for added precision. Fan-assisted distributors can help with the efficiency and homogeneity of the distribution of the cooled humid air.

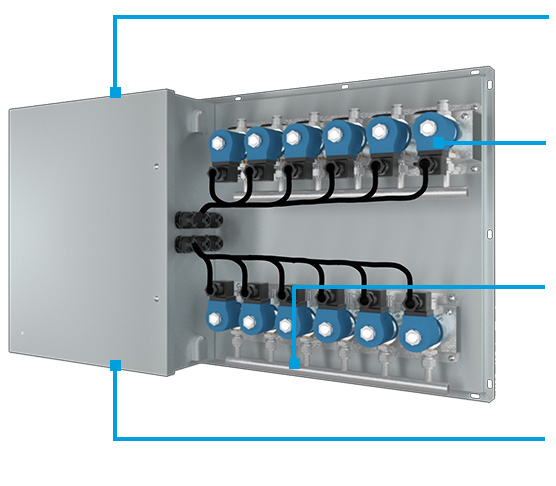

Stainless Steel panel
Nema 4 Type panel in stainless steel to house control connections for valves and fan-assisted distributors.

Configurable number of valves for each application Remote Valve Panel (RVP) can be configured with only drain valves, to be placed at the end of a long run network, avoiding the return piping distributors.

Distribution Manifold Branch out the stages from the RVP to a far away zone to limit pressure losses created by multiple long runs from the pump unit.

Fan assisted control point Dedicated connection point to control the activation of the fan-assisted distributors.

Features

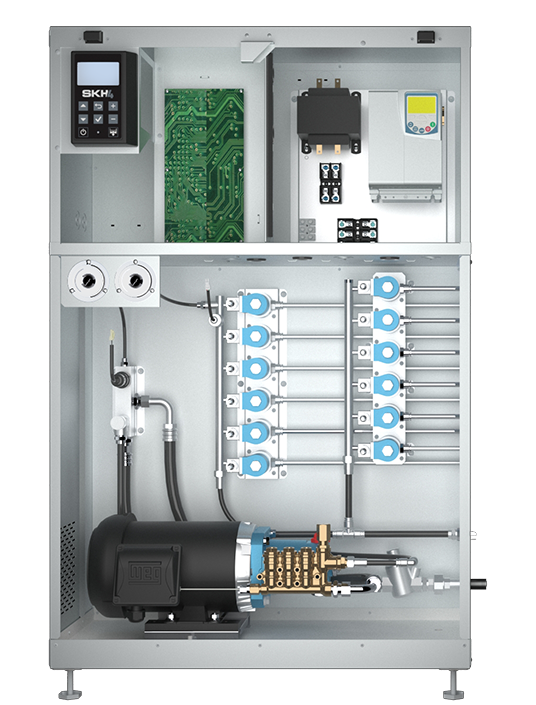

Low maintenance and hygienic stainless-steel water-lubricated pump
Pump station capacity 210-2,800 lb/h (100-1,250 L/h)
Cost-effective on/off motor
Energy efficient VFD motor
Up to six stage valves
Valves inside pump station or remote
Up to four zones per pump station
Integrated multi-platform controller
6-10 lb/h (3-5 L/h) stainless steel anti-drip nozzle to spray water into fine 7-35 μm water droplets
New in-space fan-assisted mist distributors
Custom-made nozzle rack to fit your duct or AHU dimensions

Application

Industrial space (assembly area)
Wood processing (paper and textile)
Food industry (storage of fruits and vegetables)
Outdoor space (terrace and pool area)
Data centres and electronics
Printing and photography industry

Models

SKH4	-	N	100	B	2-2	-	E	M
		Frequency N = 60Hz	Capacity 021 = 210 lb/h 050 = 500 lb/h 100 = 1000 lb/h 185 = 1850 lb/h 280 = 2800 lb/h	Pump type B = Brass S = SS oil free	Stage valve 0-6		Voltage A = 120V / 1ph B = 208V / 1ph C = 220-240V / 1ph D = 208V / 3ph E = 220-240V / 3ph F = 400V / 3ph G = 480V / 3ph H = 600V / 3ph	Motor control Blank: On/Off M = VFD
		E = 50 Hz	010 = 100 L/h 022 = 220 L/h 045 = 450 L/h 085 = 850 L/h 125 = 1250 L/h	Pump type B = Brass S = SS oil free	Drain valve: 0 - 6			Motor control Blank: On/Off M = VFD

Imperial units

Brass	(lb/h)	Model	N021B	N021B	N100B	N185B	N280B
		Maximum output – VFD	210	500	1000	1850	2800
		Minimum output – VFD	52	125	250	462	700
		Minimum output – VFD	20	20	20	20	20

Metric units

Brass	(L/h)	Model	E010B	E022B	E045B	E085B	E125B
		Maximum output – VFD	100	220	450	850	1250
		Minimum output – VFD	10	10	10	10	20
		Maximum output – On/Off (50Hz)	80	180	375	705	1040
		Minimum output – On/Off (50Hz)	20	45	94	176	260

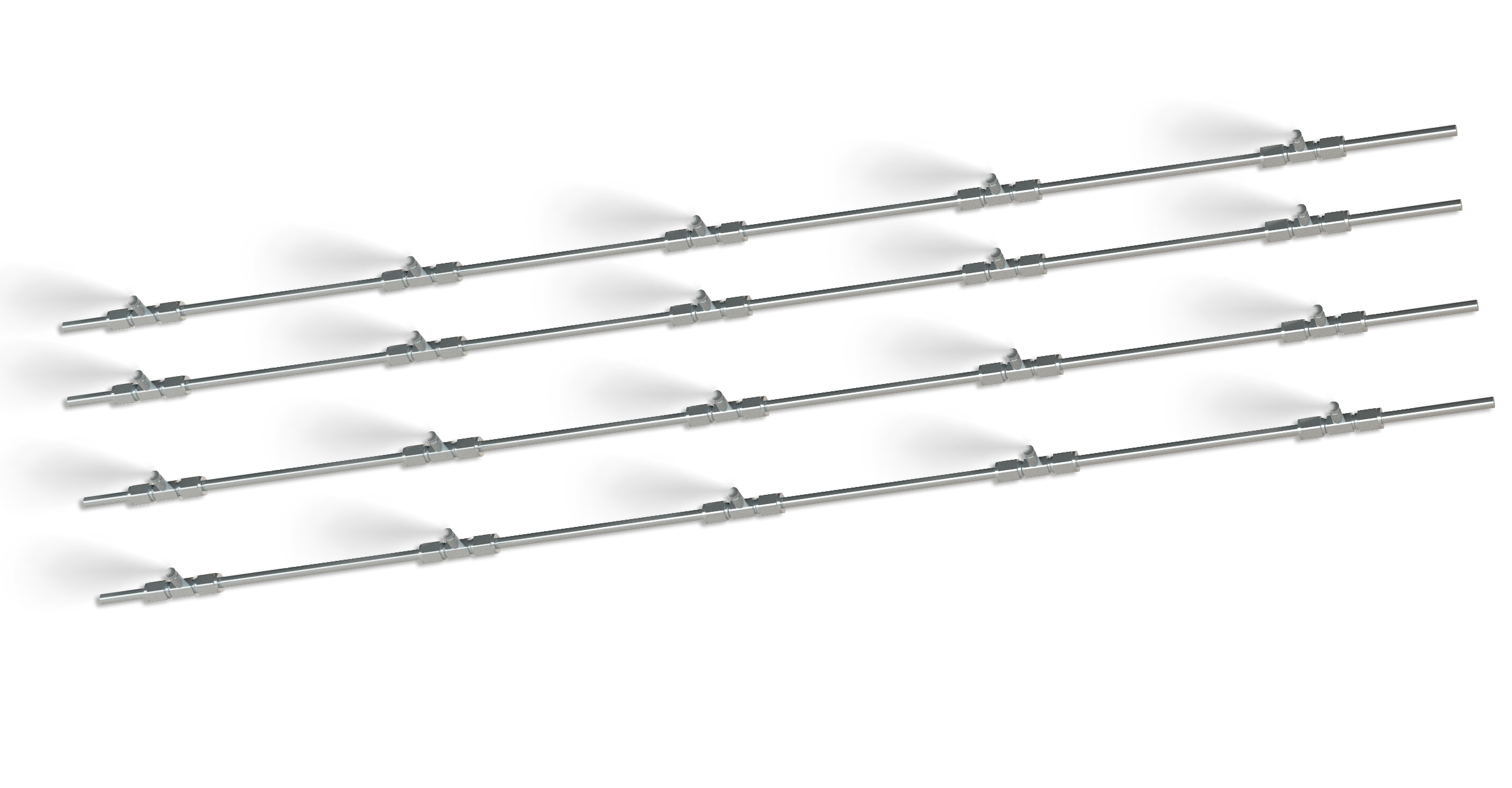

In-Space (Direct)

An array of nozzles on a high-pressure piping network creates a series of mist cones. The network then sprays in the space, starting from the pump unit or with the help of remote valve panel (RVP). The configuration of the in-space network is flexible, it can start from the pump or with remote valve panel added.

Advantages of In-Space Nozzle Rack:

The SKH4 misting nozzles can cover a large area, usually hanging from
Multiple installation options to fit every space
Cost effective solution ideal for large spaces with high ceilings (30ft / 9m)

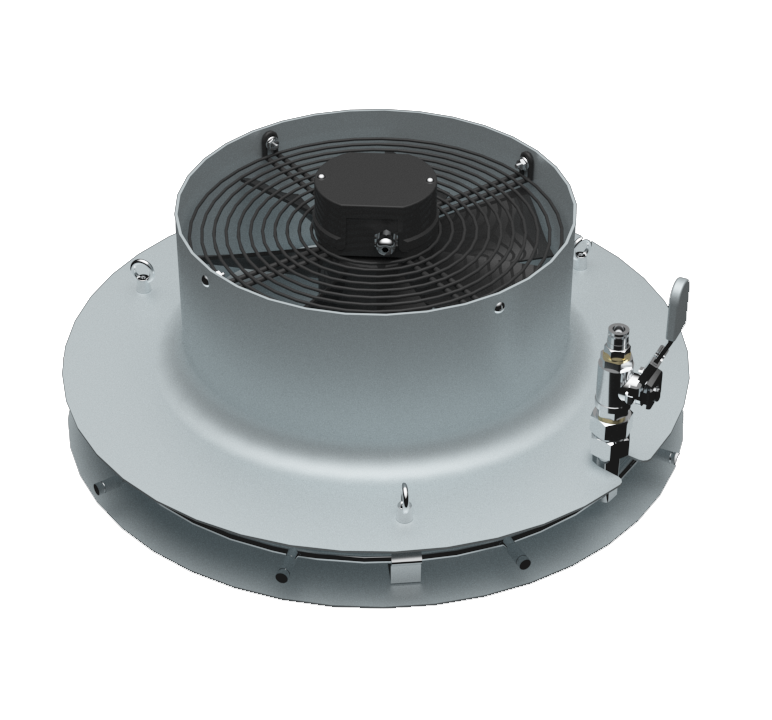

In-Space Radial spray (MDU)

Radial projection mist distributor uses an axial fan to help with absorption distances and homogeneity of the air in a room. Installed through suspension ropes from the ceiling, the MDU has a low footprint and helps cover a large area uniformly..

Advantages of the SKH4’s MDU:

High output
High coverage
Reduce absorption distance and improves air mix

The SKH4 MDU (Mist Distribution Unit) is a fan assisted distributor that will spread mist radially. Ideal for large space with low ceiling (15-20ft / 4.5-6m).

Model #	Air Volume		Nozzles	Max. Capacity
Model #	CFM	m³/h	Qty	Lb/h	Kg/h
MDU-1000	1000	1700	6 to 9	40-100	18-45
MDU-2000	2000	3400	6 to 12	40-132	18-60

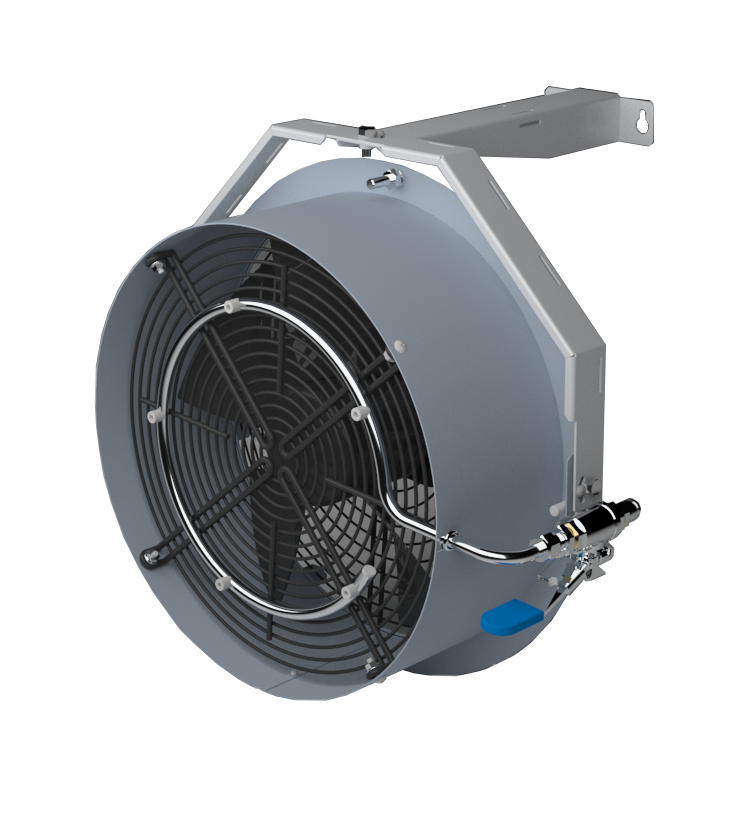

In-Space axial spray (ADU)

Axial projection mist distributor uses an axial fan to help with absorption distances and homogeneity of the air in a room. Installed on walls or beams, the ADU has multiple sizes to provide precise humidity distribution for every type of project.

Large range of output
Localize and precise output
Powerful front throw of cooled humid air

The SKH4 ADU (Axial Distribution Unit) is a fan-assisted distributor that will blow mist in the axial direction. Ideal for large spaces with low ceilings (8-20ft / 2.4-6m).

Model #	Air Volume		Nozzles	Max. Capacity
Model #	CFM	m³/h	Qty	Lb/h	Kg/h
ADU-0200	200	340	1	6-11	3-5
ADU-1000	1000	1700	5	33-55	15-25

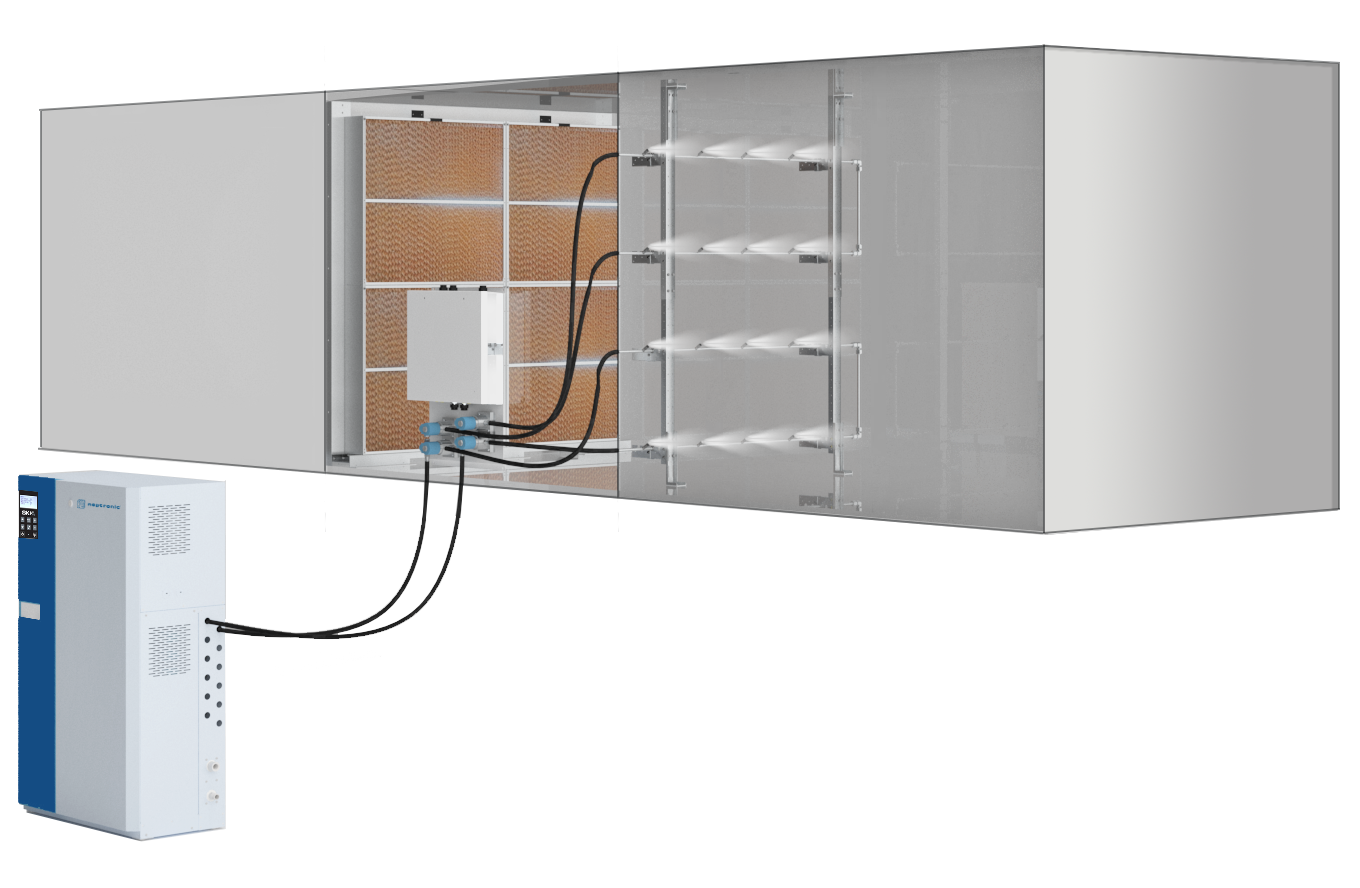

In-Duct Nozzle Rack

Custom-made nozzle rack and droplet separator has been installed in the duct or AHU for precise output and the mist absorption. Single pump unit can supply multiple ducts with or without remote valve panel (RVP).

Advantages of In-Duct Nozzle Rack:

Up to six stage valves to ensure precise humidity output
Spray contained in duct, no ceiling-height limitation

The SKH4 controller is configured specifically for your SKH4 — Atomizing High-Pressure Humidifier.

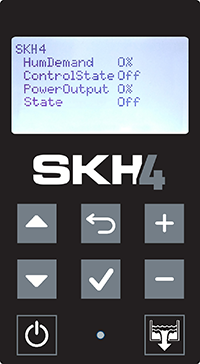

User-friendly, menu-driven interface on a 128 x 64 LCD with eight function buttons for faster configuration and operation
User rights management system allows for menu to display only functions available to the type of user logged in: End User, Service Technician, Installer, or Integrator
“Quick Config” menu allows for faster and easier installation, by displaying only the most used functions and configurations
Independent scheduling system for unit operation and drain cycle configurable via the menu or the BACnet communication interface
In-field firmware can be upgraded via SD card, USB or BACnet
Simple viewing and exporting of trending logs and alarm logs

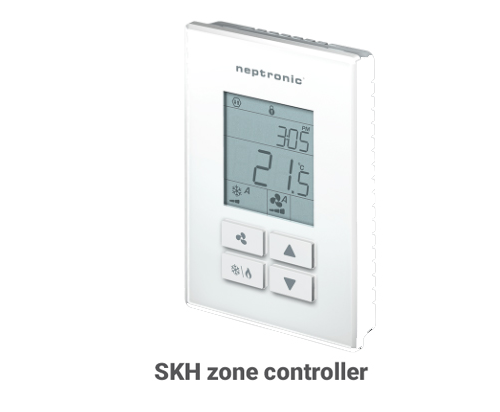

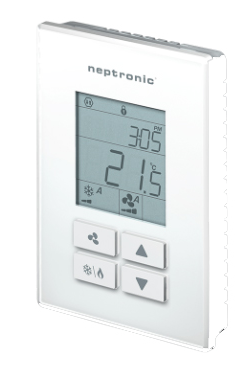

SKH4 - TRUB – Universal Wall-Mount Room Controller

Zone controller provides pump unit with zone demand
Up to four zones per pump unit
In space / In duct humidification
Configurable for all control types and protections
On / off demand, analog demand
Temperature / humidity control
Temperature / humidity modulating high limit
Remote sensors
Air flow, high limit, interlock protection

Optional Features

The selectable BACnet or Modbus communication interface allows access to over 75 objects / registers for integration with a BMS and IoT (Internet of Things)
Ethernet
Communication over MS/TP or IP connection
Web services make it possible to perform humidifier configurations, remote diagnostics and many more functions from any location
