STEAM DISTRIBUTION SYSTEMS

Absorption distance of less than 3 feet (1 meter)
Stainless steel manifold welded or collapsible
Custom built for any size duct
Vertical distribution span for maximizing surface area

Prevent condensation in air ducts
Absorption distance of less than 5 feet (1.5 meter)
Stainless steel tube with inserted steam brass nozzles

Prevent condensation in air ducts
Absorption distance of less than 5 feet (1.5 meter)
2 rows, 90⁰ configuration of the steam nozzles
to reduce length of manifold

Ideal solution where there is no duct system
Quiet steam distribution
Powered and controlled by the humidifier
Air pressure switch included

Multi-Steam
Very Short
Absorption Distance
S.A.M.
Short
Absorption Distance
S.A.M.E2
Very Short
Absorption Distance
SDU
Space
Distribution Unit

Tech Time

English
Multi-Steam^TM
Français
Multi-Steam^TM

Specifications
Multi-Steam^TM
S.A.M.
S.A.M.E2
SDU

Multi-Steam^tm HDR *
Multi-Steam^tm HD
Multi-Steam^tm SD

High-Efficiency Insulated
Steam Distributor with Re-Evaporator
High-Efficiency Insulated
Steam Distributor
Standard
Steam Distributor

Overview

Steam Ejection Eyelet

304 stainless steel
Internal slope returns generated condensate
to the steam dispersion channel.
Patent-pending technology

Channels

Double wall 304 stainless steel
(24 gauge)
Encapsulated Armacell
UT/Solaflex^tm foam insulation
(1/4" on the side and 1/2" on the top)
Model HDT, channels are insulated,
header is non insulated.

Header

Double wall 304 stainless steel (18 gauge)
Encapsulated Armacell UT/Solaflex^tm
foam insulation 3/8"

Custom Design

Use our Humidisoft web application to have your steam
distributor custom built to your exact specifications.
Dispersion channels can be factory or field
assembled to the header.

Steam
Flow

Back to
Channel

Condensate
Accumulation
Levels

Benefits

Wasted energy is reduced by up to 85%. This includes steam supply consumption and wasted condensate generated by heat transfer from hot channel to air stream.
HD technology's energy savings will pay back the difference invested in approximately 15 months. Payback varies depending on several factors, such as application, site, energy costs and other system design variables. Please do not hesitate to contact us and we will help you calculate your payback.
Prevents condensate ejection on start up and during any modulating humidity demand.
100% stainless steel construction (reduces maintenance)

Channel and Header

Double wall 304 stainless steel with encapsulated Armacell UT/Solaflex™ foam insulation.
- Channels: 24 gauge steel with insulation of 1/4" on the side and 1/2" on the top
- Header: 18 gauge steel with insulation of 3/8"
Internal design ensures that insulation avoids contact with airflow and with saturated steam.
Outer shells are welded in place to fully cover the insulation and protect it from wear and tear.
Continuous seam weld to prevent any steam leak.
Dispersion channels can be factory or field assembled to the header.
Welded bottom plate, gasket and 4 screws for leak-proof mounting of each channel on the header.
Channels are equally spaced over the length of the header for a better steam distribution across the width of the duct or air handler.
Header's internal distribution tube spans the length of the header to supply steam equally to all steam dispersion channels.

Steam Ejector Eyelets (Patent Pending)

304 stainless steel
Internal slope returns condensate generated within the eyelet to the steam dispersion channel.
Steam ejection point located away from the steam dispersion grid's external sheath.
Eyelets are mounted on both sides of the channels to evenly distribute steam perpendicular to the airflow.
Rows of eyelets on opposite channels are mounted staggered to prevent face to face steam injection of adjacent channels.

Standards

ASTM E84 which is a flame spread and smoke development index rating
UL181 test requirement for mold growth
ASTM G21 test requirements for fungi resistance
ASTM G22 test requirements for bacterial resistance

Compatibility

This unique technology is compatible with the following Neptronic humidifier series for atmospheric and low pressure steam applications, and when humidifying with the HVAC system in cooling mode.

SKE4: Resistive Steam Humidifiers
SKG4: Gas Fired Humidifiers
SKS4: Steam to Steam Humidifiers
SKD: Direct Steam Injection Humidifiers

Overview

Steam Eyelet

Brass construction
The eyelets extend into the interior of the steam distribution
tubes, preventing condensed droplets from being spayed into
the air stream

Steam dispersion tubes

304 Stainless steel
Steam dispersion tubes are equally spaced over the length of the
header for a better steam distribution across the width of the duct or air
handler
Model SDC, collapsible version for field assembly

Header

304 Stainless steel
Continuous seam weld to prevent any steam leak

Custom Design

Use our Humidisoft web application to have your steam
distributor custom built to your exact specifications.

Benefits

Short absorption distance.
Custom built for the duct or AHU dimensions.
The vertical distributors span the duct/AHU section taking advantage of the area for more efficient diffusion of the steam into the air stream.
Prevents condensate ejection on start up and during any modulating humidity demand.
Stainless steel construction.
Completely welded at the factory or collapsible version for in-field assembly.

Vertical steam dispersion tubes and Header

Both the header and vertical steam dispersion tubes are constructed from stainless steel.
Continuous seam weld to prevent any steam leak.
Dispersion tubes can be factory or field assembled to the header.
Steam dispersion tubes are equally spaced over the length of the header for a better steam distribution across the width of the duct or air handler.

Steam Ejector Eyelets

Brass eyelets.
The eyelets extend into the interior of the steam distribution tubes, preventing condensed droplets from being spayed into the air stream.
Steam ejection point located away from the steam dispersion tubes.
Eyelets are mounted on both sides of the channels to evenly distribute steam perpendicular to the airflow.
Rows of eyelets on opposite channels are mounted staggered to prevent face to face steam injection of adjacent tubes.

Compatibility

This unique technology is compatible with the following Neptronic humidifier series for atmospheric and low pressure steam applications, and when humidifying with the HVAC system in cooling mode.

SKE4: Resistive Steam Humidifiers
SKG4: Gas Fired Humidifiers
SKS4: Steam to Steam Humidifiers
SKD: Direct Steam Injection Humidifiers

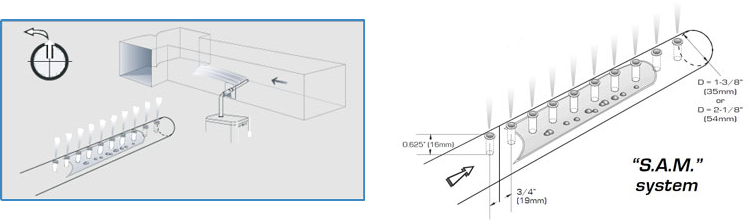

S.A.M. consists of a stainless steel tube with inserted steam brass nozzles which collect dry steam from the center of the tube. The fuction of the nozzles is to prevent condensation from escaping to the duct. The accumulated condensation is channeled through the inclined steam dispersion tube, back to the humidifier or the steam trap.

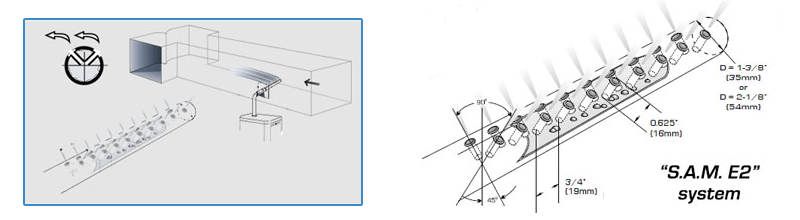

The S.A.M. E2 dispersion manifolds with 2 rows, 90⁰ configuration of the steam nozzles, allows significant reduction of the total length of the manifold for smaller duct size applications. The function of the nozzles is to prevent condensation from escaping to the duct. The accumulated condensation is channeled through the inclined steam dispersion tube back to the humidifier or the steam trap.

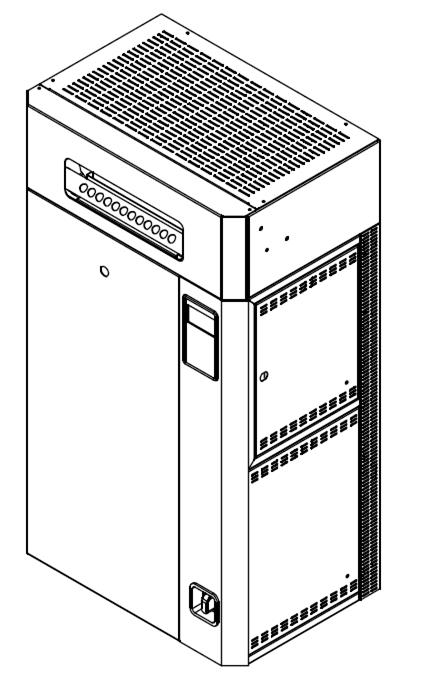

Space Distribution Unit “SDU” is to be used where a ducted air distribution system is not available or in localized areas. The steam is discharged with a quiet fan blower (available in 3 sizes) directly into the area.

The SDU is available for the SKE4 and SK300 from 6-90lb/hr (2.73-41kg/hr). It can be mounted on the humidifier (factory assembled) or remotely mounted for field installation

The SDU is also available for the SKR residential series.
