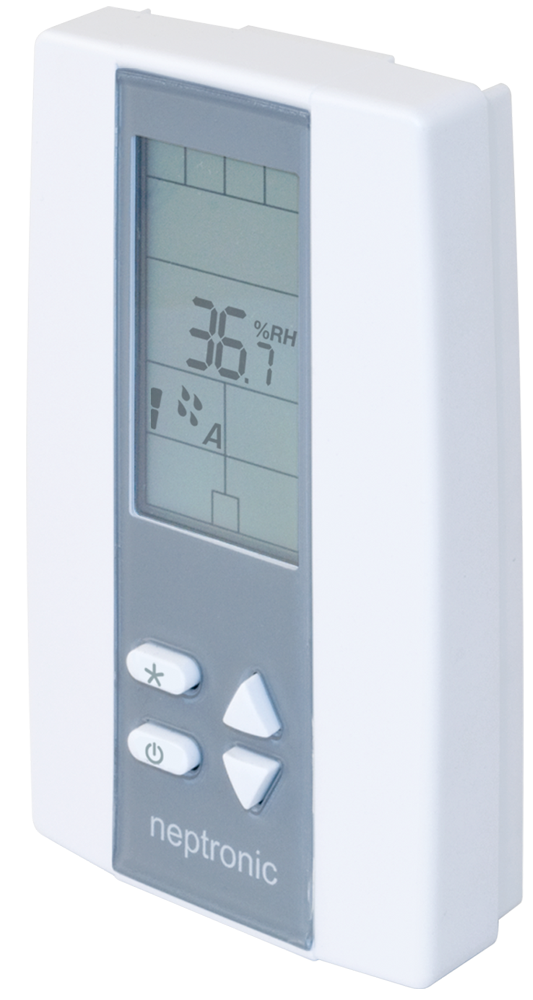

HRO
- Wall Mount Humidity Controller
Details
- 6 humidification and dehumidification outputs
- 4 analog outputs (0-10 or 2-10 Vdc)
- 2 dry contacts
- 4 Inputs
- 2 Configurable analog inputs (0-10 or 2-10 Vdc)
- Window or external temperature sensor input
- Alarm status input
- Selectable and configurable ramps
- External humidity
- High Limit
- External demand low signal selector (LSS)
- External humidity sensor averaging
- Duct supply input
- External demand signal
- 24Vac operation
- Adjustable setpoint with auto reset from external sensor
- Backlit LCD with simple icon and text driven menus
- Humidification and dehumidification indicator
- Selectable Fahreinheit or Celsius scale
- Multi level lockable access menu
- Lockable setpoint and control mode
BACnet (HROB20 model only)
- BACnet MS/TP @9600, 19200, 38400, or 76800bps
- Selectable MAC address
- Manual or automatic device instance configuration
- Automatic Baud Rate Detection
Models
- Neptronic SKR,
SKE4,
SKS4,
and SKG4 humidifiers
- Other humidification and dehumidification applications
Details
- Duct mounted humidity sensor
- Built-in temperature sensor
- 2 analog outputs (0 - 10 Vdc)
- Can be installed in association with Neptronic room humidistat (HRO20)
- Status LED
SHR10 - Wall Mount Humidity Sensor
Details
- Wall mounted humidity sensor
- Built-in tempearture sensor
- Plastic cover for wall mount installation
- 2 analog outputs (0 - 10 Vdc)
- Can be installed in association with Neptronic room (HRO20) humidistat or directly to the Neptronic SKE4 Series Steam humidifier
- High accuracy and stability
OTW / SHW - Window Temperature Sensor
Details
- 10KΩ (SHW0-11) or 3.3Ω (OTW) temperature sensor
- Self adhesive: sticks directly on window
- SHW0-11 compatible with HRO20 humidistats
- OTW compatible with SKR humidifiers
Details
- Used to program the SK humidifiers
- Icon-driven information and 1 line of text information
- 4 wires between humidistat and SK
- Programmable PID on humidity
SHS20 - Room High Limit Humidistat
Details
- SHS20 - High-limit setpoint dial (20 - 90% RH)
- For SKE4 and SKR On/Off humidifier
- Built-in humidity sensor
- 24Vac or 24Vdc
- 1 dry contact output
HRC20 - Room Humidistat
Details
- HRC20 - Humidity setpoint dial (10 - 60% RH)
- For SKE4 and SKR On/Off humidifiers
- Built-in humidity sensor
- 24Vac or 24Vdc
- 1 dry contact output
SHS80 - Duct Mount, High Limit Humidistat
Details
- Built-in temperature and humidity sensor
- On/Off high limit humidistat with on-board setpoint adjustment
- 2 analog outputs (0-10 Vdc)
- Status and high limit LEDs
- 1 dry contact output
- For SK4 humidifiers
SHS80-300 - Duct Mount, High Limit Humidistat
Details
- Built-in humidity sensor
- On/Off high limit humidistat with on-board setpoint adjustment
- Status and high limit LEDs
- For SKR and SK300/SKE humidifier
