Integrated Management System (IMS)
Products

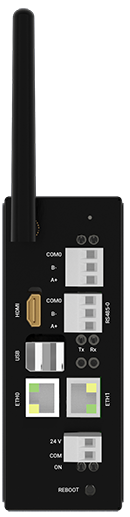

Edge Device
The Edge device is an important component of the Neptronic Integrated Management System (IMS), featuring purpose-built hardware centered around an ARM processor. This system software provides a wide array of services aimed at supporting installers, mechanical contractors, balancers, facility management staff, and building owners in effectively commissioning and overseeing facilities with minimal training required.
Utilizing the Edge device, the IMS offers both standalone, on-premises management capabilities and the option for cloud connectivity, catering to diverse user needs. The Edge hardware facilitates all functionalities of the IMS, including template deployment, backup and restore operations, archiving, firmware updates, and network analysis using tools like Wireshark. This integration ensures comprehensive management and robust operational support for users across various facility management tasks.
- Up to 2 RS-485 ports supporting a maximum of 64 devices
- 100 Mbps and 1 Gbps LAN ports for IP and LAN connectivity
- Supports Bluetooth and/or Wi-Fi options
- Wi-Fi hotspot tethering capability with a phone
- USB ports for exporting Wireshark logs and data logs, and local keyboard and mouse connectivity
- HDMI port for local display

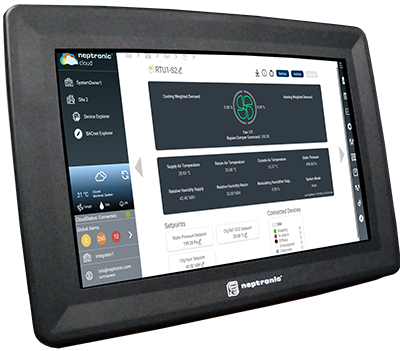

Touch Screen
Neptronic offers an IPS (in-plane switching) capacitive touch screen interface designed to enhance the Integrated Management Solution (IMS). Available in panel mount or remote display configurations, the touch screen provides exceptional flexibility to accommodate diverse installation needs.
Standard options include a 10.1” display with additional choices of 7” and 15” sizes available for OEM applications. The user interface and graphics are intuitively designed and standardized across the entire IMS system, reducing associated training expenses.
The IMS architecture is adaptable, allowing for the integration of the touch screen at any stage of the project, providing further flexibility and scalability to meet evolving requirements.
- Custom-built hardware based on an ARM processor
- 10.1” IPS capacitive touch screen with 1280x800 resolution
- On-board RS-485 ports for communication with devices on the network
- Supports Modbus RTU or BACnet MSTP protocols on the RS-485 ports
- TCP/IP connectivity via onboard Ethernet ports
- Optional Wi-Fi support

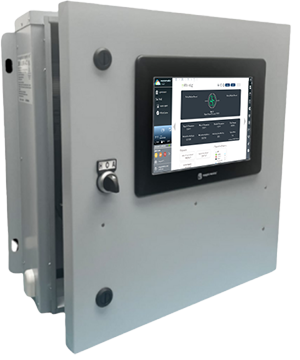

Control Panel
Neptronic produces custom-built control panels that adhere to UL508 standards. Customers can benefit from:
- Wide range of material - stainless steel / painted or galvanized sheet metal
- IP10/NEMA 1 to IP56/NEMA 4x ratings
- Multiple voltage options - 24VAC to 600V/3 phase panels
- Wide selection of disconnect switches, fuses and accessories
