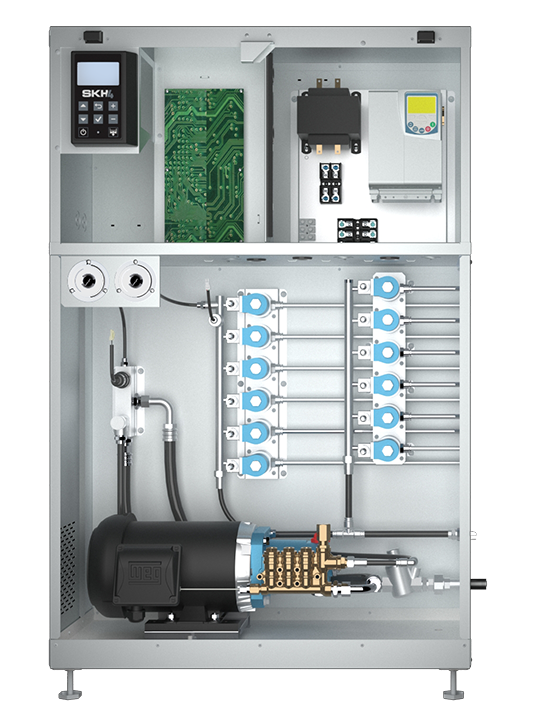

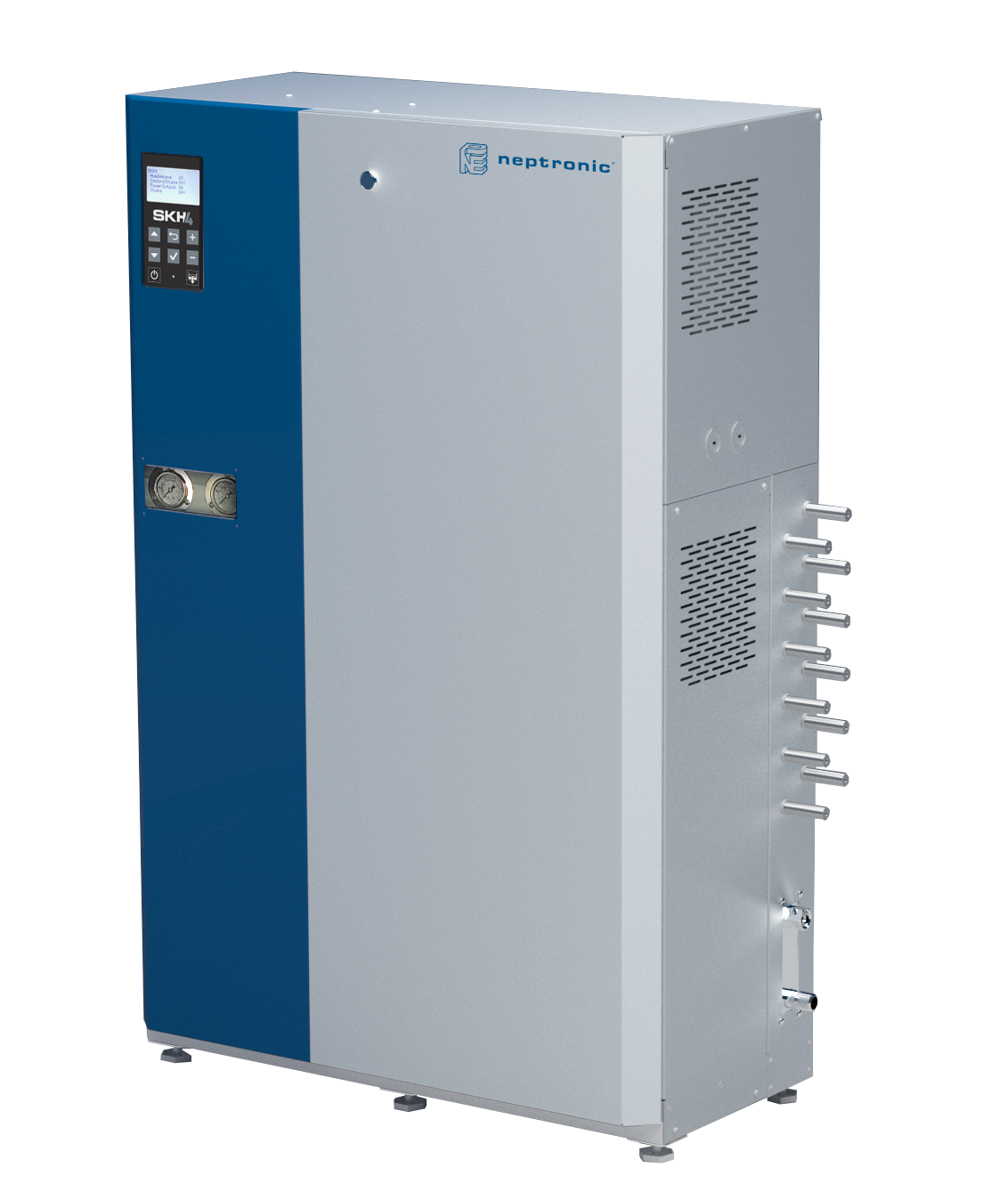

SKH4 - Atomizing High Pressure Humidifier

High humidification at low power

The SKH4 pumps water at high pressure of 1,000 psi (70 bar) through a series of nozzles to produce a fine mist. The adiabatic evaporation used by the SKH4 takes energy (heat) from the surrounding air to evaporate the fine mist (water droplets). This evaporative cooling / humidification process provides large output capacities of 210- 2,800 lb/h (100-1,250 kg/h), that can be modulated with a high turndown ratio of 20 lb/h (10 kg/h).

The power consumption is very low for the high load of humidification produced, compared with isothermal technologies or even other adiabatic technologies such as compressed air. The range of motor from 1/2 to 5HP (0.4 kW to 3.7 kW) is able to generate high cost savings on the humidification process and also on the cooling load of a space.

The SKH4’s controller can be configured with either temperature control for a cooling application or humidity control for humidification. It allows you to temper industrial and commercial indoor areas where heat build-ups could be unfavourable to occupants, production, and material goods.

Distribution can be from nozzle placed directly in space or inside a duct, for added precision. Fan-assisted distributors can help with the efficiency and homogeneity of the distribution of the cooled humid air.

APPLICATIONS

Typical Applications

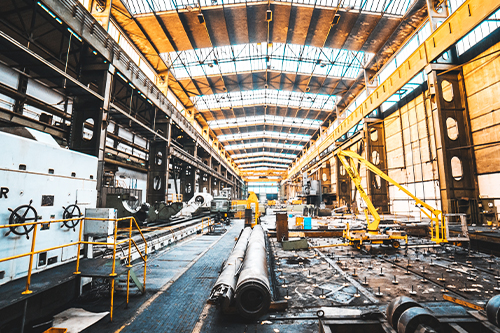

Industrial Space (assembly area)

Improve indoor air quality, health and comfort
Help reduce absenteeism
Lower heating cost with perceived high temperature
Improve electronic equipment’s smooth operation

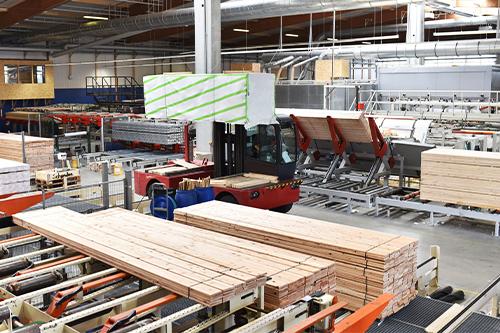

Wood processing (paper and textile)

Reduce electrostatic buildup and dust accumulation
Mitigate wood deformation
Minimize issues with production process such as machine breakdown
Increase employee health, comfort and motivation

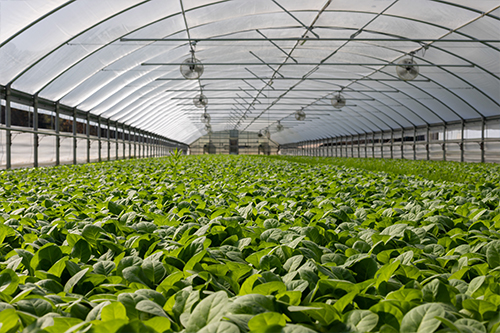

Food industry (storage of fruits and vegetables)

Increase plant growth conditions
Reduce risks of sickness and rot
Prevent over-watering
Decrease produce loss caused by wilting or rot

Outdoor space (terrace and pool area)

Increase comfort
Outdoor cooling at low cost
Attract customers at your restaurant
Impress your guests at home

Data centres and electronics

Maintain and improve product quality
Reduce waste of sensitive products
Reduce risk of electrostatic buildup and discharge
Increase equipment’s lifespan
Improve staff health and comfort

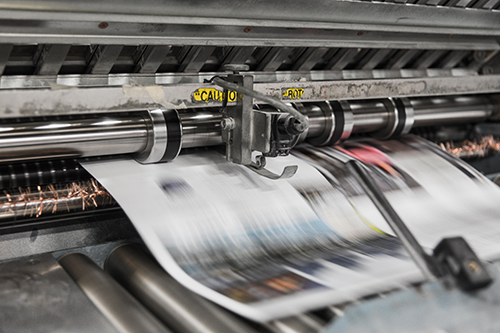

Printing and photography industry

Reduce risks of paper deformation
Prevent paper from sticking, misfeeding and not stacking properly
Increase toner adhesion
Ensure superior end-result quality

NOMENCLATURE

SKH4	-	N	100	B	2-2	-	E	M
		Frequency N = 60Hz	Capacity 021 = 210 lb/h 050 = 500 lb/h 100 = 1000 lb/h 185 = 1850 lb/h 280 = 2800 lb/h	Pump type B = Brass S = SS oil free	Stage valve 0-6		Voltage A = 120V / 1ph B = 208V / 1ph C = 220-240V / 1ph D = 208V / 3ph E = 220-240V / 3ph F = 400V / 3ph G = 480V / 3ph H = 600V / 3ph	Motor control Blank: On/Off M = VFD
		E = 50 Hz	010 = 100 L/h 022 = 220 L/h 045 = 450 L/h 085 = 850 L/h 125 = 1250 L/h	Pump type B = Brass S = SS oil free	Drain valve: 0 - 6			Motor control Blank: On/Off M = VFD

Remote zone controller (up to 4 zones/pump unit)
Remote valve panel (optional)
BACnet/Modbus IP plugin board (optional)

SKH4 with Brass Pump

Imperial units

Brass	(lb/h)	Model	N021B	N050B	N100B	N185B	N280B
		Maximum output	210	500	1000	1850	2800
		Minimum output - On/Off	52	125	250	462	700
		Minimum output – VFD	20	20	20	20	20

Metric units

Brass	(L/h)	Model	E010B	E022B	E045B	E085B	E125B
		Maximum output – VFD	100	220	450	850	1250
		Minimum output – VFD	10	10	10	10	20
		Maximum output – On/Off (50Hz)	80	180	375	705	1040
		Minimum output – On/Off (50Hz)	20	45	94	176	260

SKH4 with oil-free Stainless Steel Pump

Imperial units

SS Oil Free	(lb/h)	Model	N062S	N140S	N225S	N280S
		Maximum output – VFD	625	1400	2250	2800
		Minimum output – VFD	62	140	225	280

Metric units

SS Oil Free	(L/h)	Model	E028S	E060S	E100S	E125S
		Maximum output – VFD	280	600	1000	1250
		Minimum output – VFD	28	60	100	125

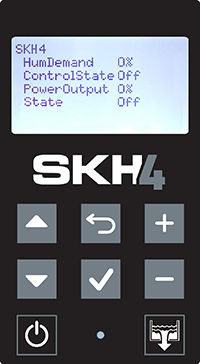

Integrated, Multi-Platform Controller

The SKH4 controller is configured specifically for your SKH4 - Atomizing High Pressure Humidifier.

User-friendly, menu-driven interface on a 128 x 64 LCD with 8 function buttons for faster configuration and operation
User rights management system allows for menu to display only functions available to the type of user logged in: End User, Service Technician, Installer or Integrator
“Quick Config” menu allows for faster and easier installation, by displaying only the most used functions and configurations
Independent scheduling system for unit operation and drain cycle configurable via the menu or the BACnet communication interface
In-field firmware can be upgraded via SD card, USB or BACnet
Simple viewing and exporting of trending log and alarm log

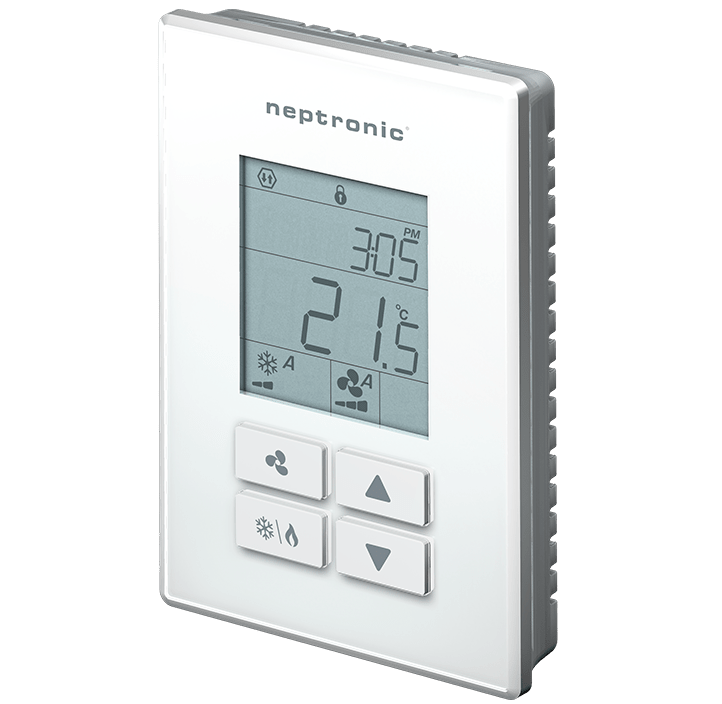

SKH4 – Zone controller

Zone controller provides pump unit with zone demand
Up to 4 zones per pump unit
In space/In duct humidification
Configurable for all control types & protections:
- On/off demand, analog demand
- Temperature/humidity control
- Temperature/humidity modulating high limit
- Remote sensors
- Air flow, high limit, interlock protection

SKH4 zone controller

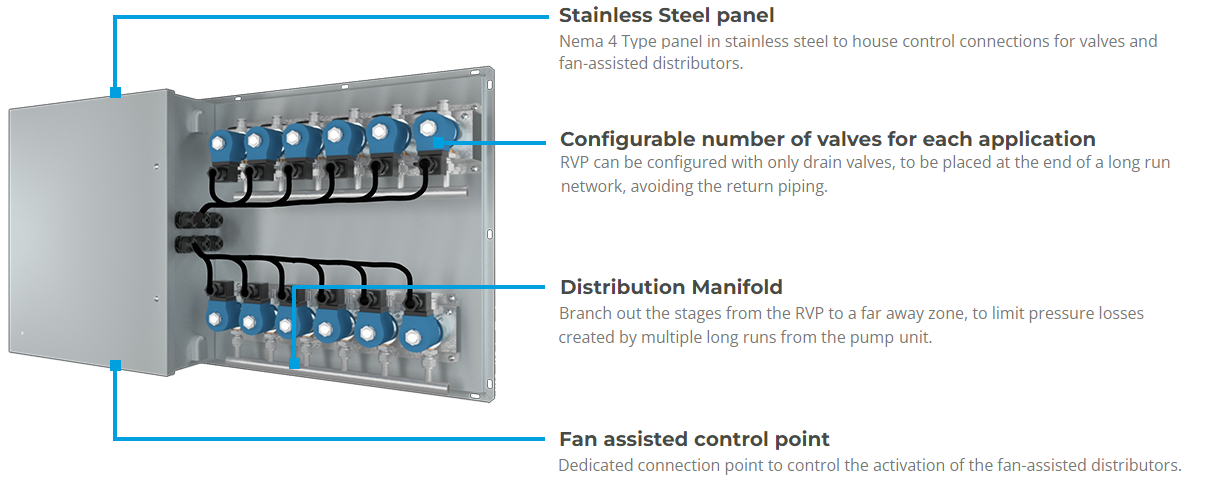

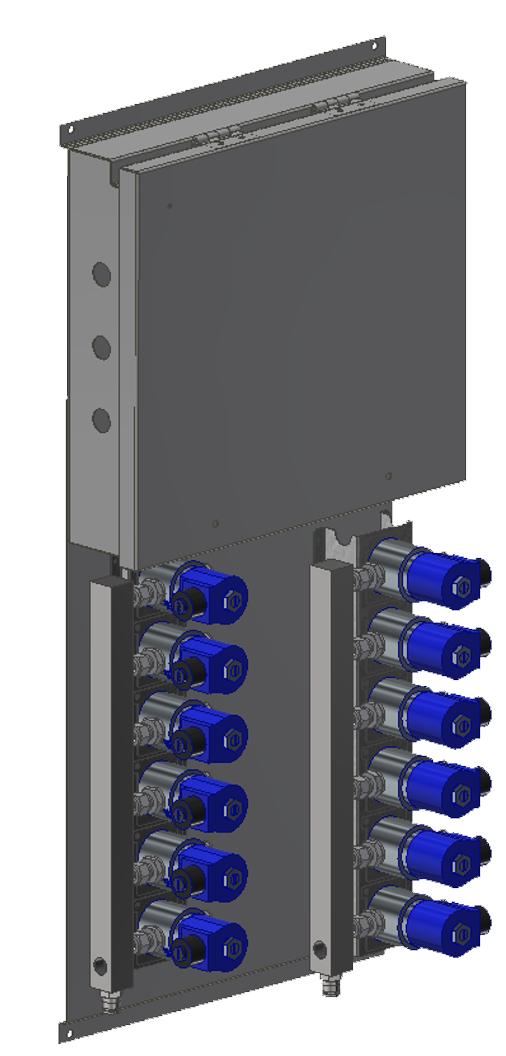

Remote valve pannel (Optional)

MIST DISTRIBUTION

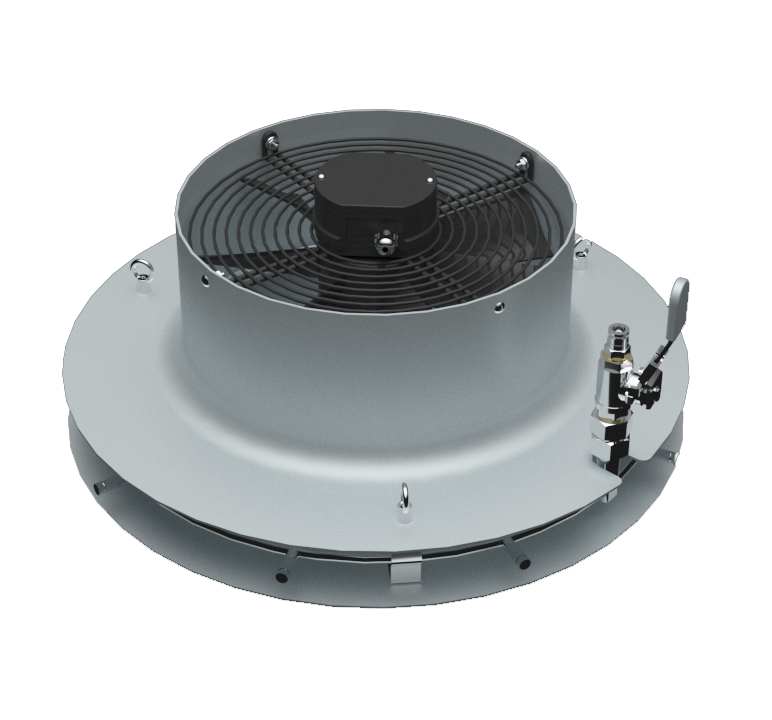

MDU

Radial projection mist distributor using an axial fan to help with absorption distances and homogeneity of the room air. Installed by suspension ropes from the ceiling, the MDU as a low footprint and helps cover a large area uniformly.

Advantages of the SKH4’s MDU:

High output
High coverage
Reduce absorption distance and improves air mix

The SKH4 MDU (Mist Distribution Unit) is a fan assisted distributor that will spread mist radially.
Ideal for large space with low ceiling (15-20ft / 4.5-6m).

Model #	Air Volume		Nozzles	Max. Capacity
Model #	CFM	m³/h	Qty	Lb/h	Kg/h
MDU-1000	1000	1700	6 to 9	40-100	18-45

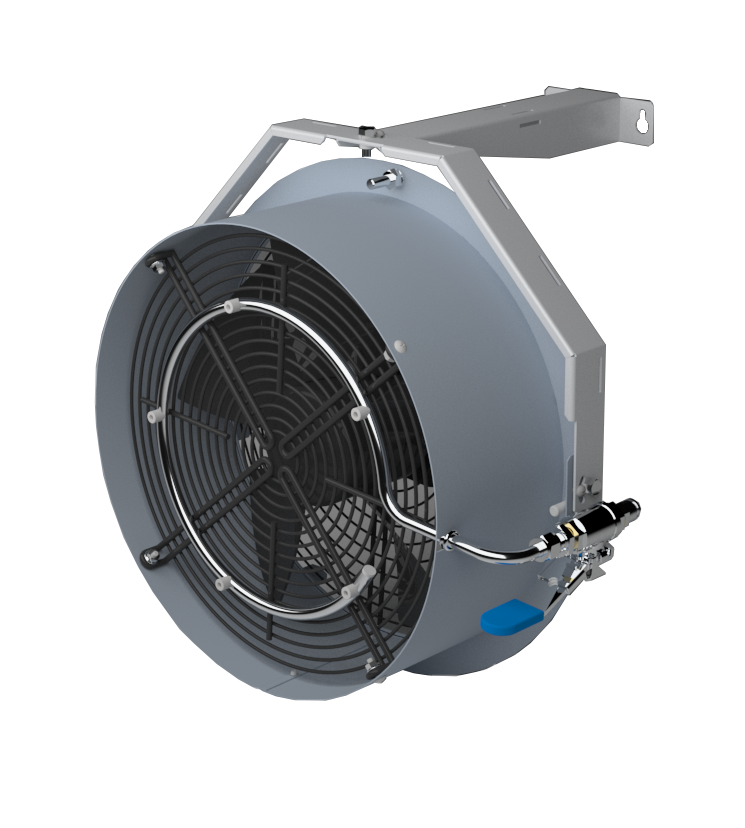

ADU

Axial projection mist distributor using an axial fan to help with absorption distances and homogeneity of the room air. Installed on walls or beams, the ADU has multiple size to provide precise humidity distribution for every type of project.

Advantages of the SKH4’s ADU:

Large range of output
Localize and precise output
Powerful front throw of cooled humid air

The SKH4 ADU (Axial Distribution Unit) is a fan assisted distributor that will blow mist in axial direction.
Ideal for large space with low ceiling (8-20ft / 2.4-6m).

Model #	Air Volume		Nozzles	Max. Capacity
Model #	CFM	m³/h	Qty	Lb/h	Kg/h
ADU-0200	200	340	1	6-11	3-5
ADU-1000	1000	1700	5	33-55	15-25

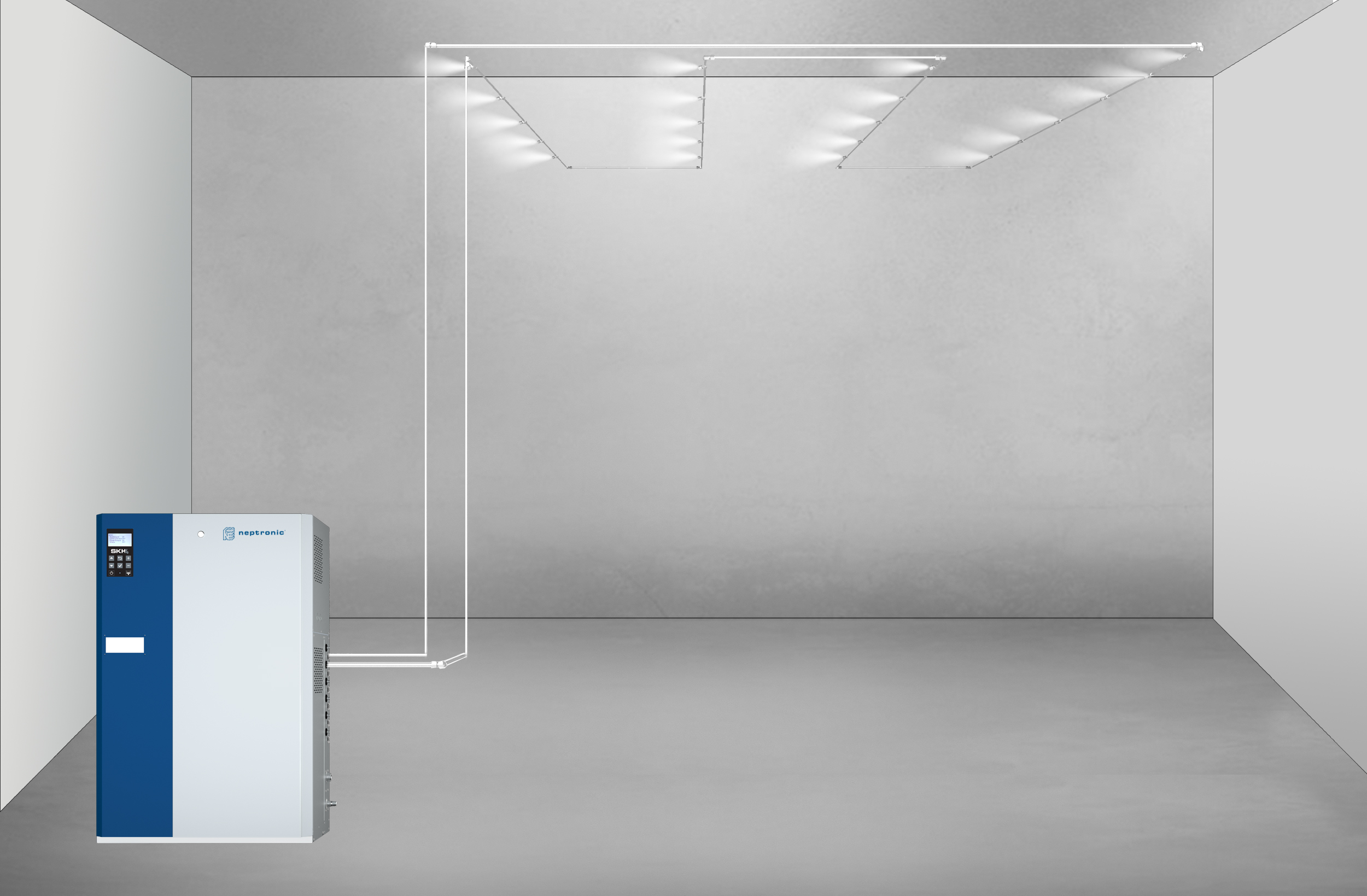

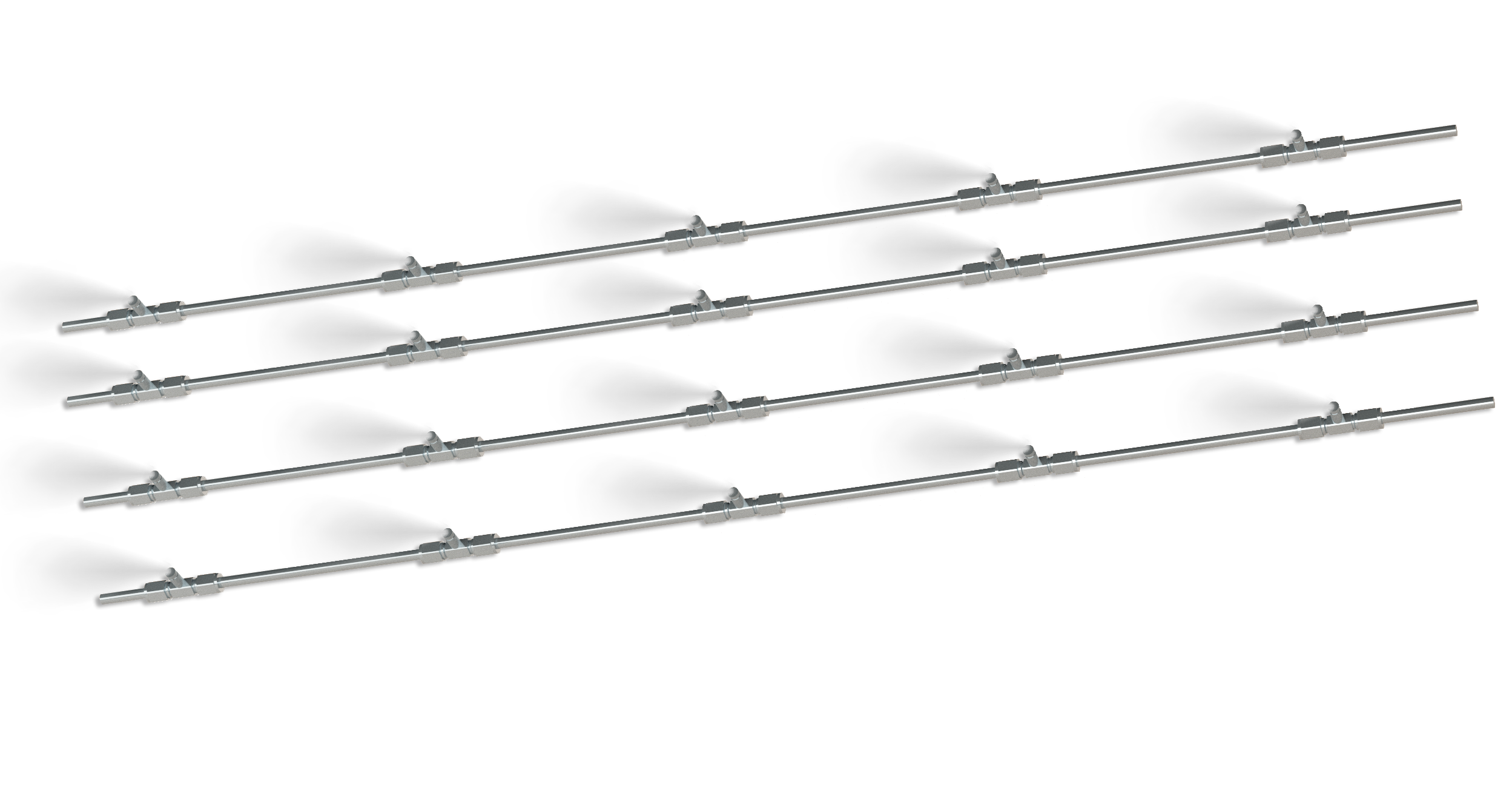

In-Space Nozzle Rack

Array of nozzle on a high-pressure piping network creating a series of mist cones. The network can be created to spray in the space, starting from the pump unit or with the help of remote valve panel (RVP).

Advantages of In-Space Nozzle Rack:

The SKH4 misting nozzles can be spread across large area, generally hanging from ceiling
Multiple installations options to fit every space
Cost effective solution ideal for large space with high ceiling (30ft / 9m)

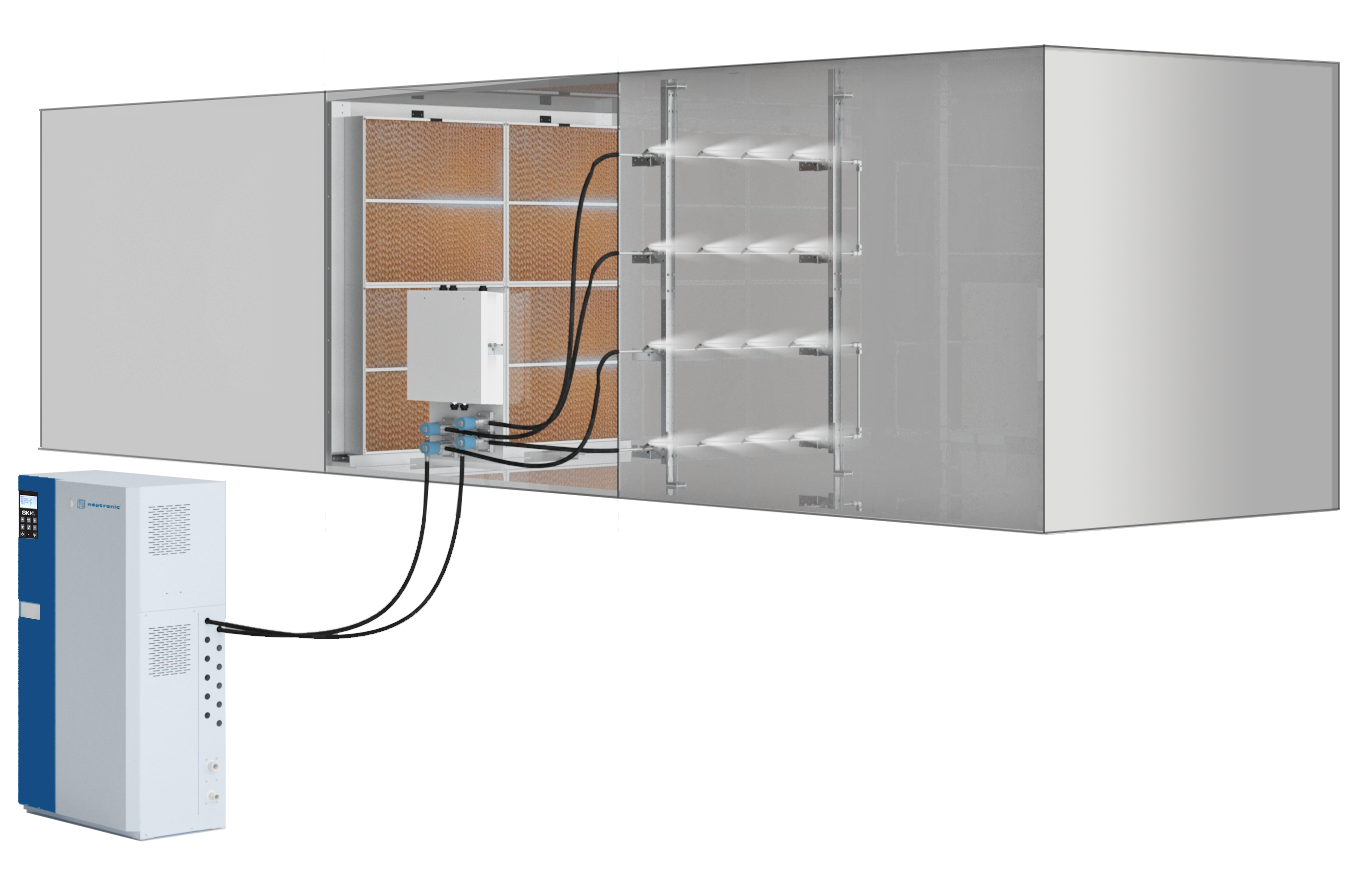

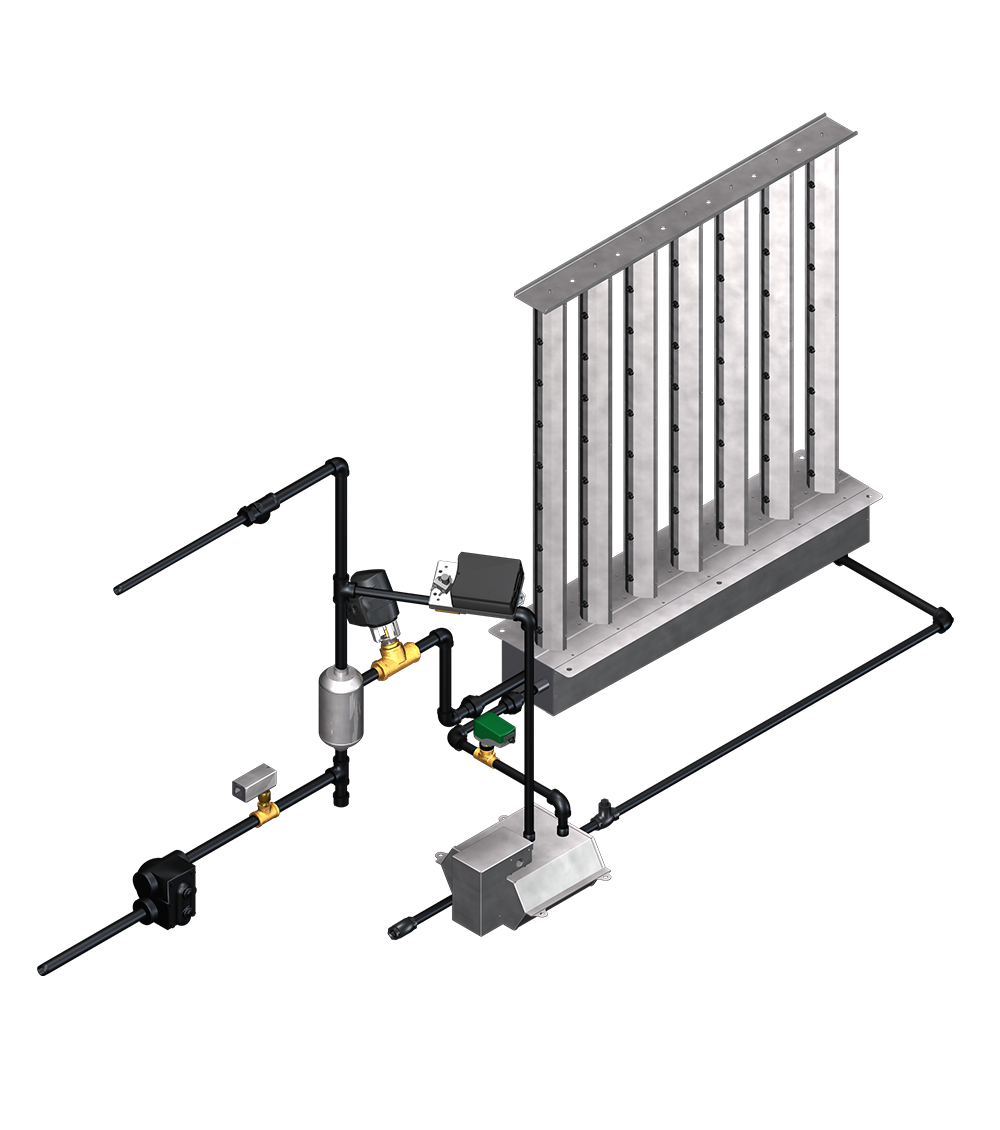

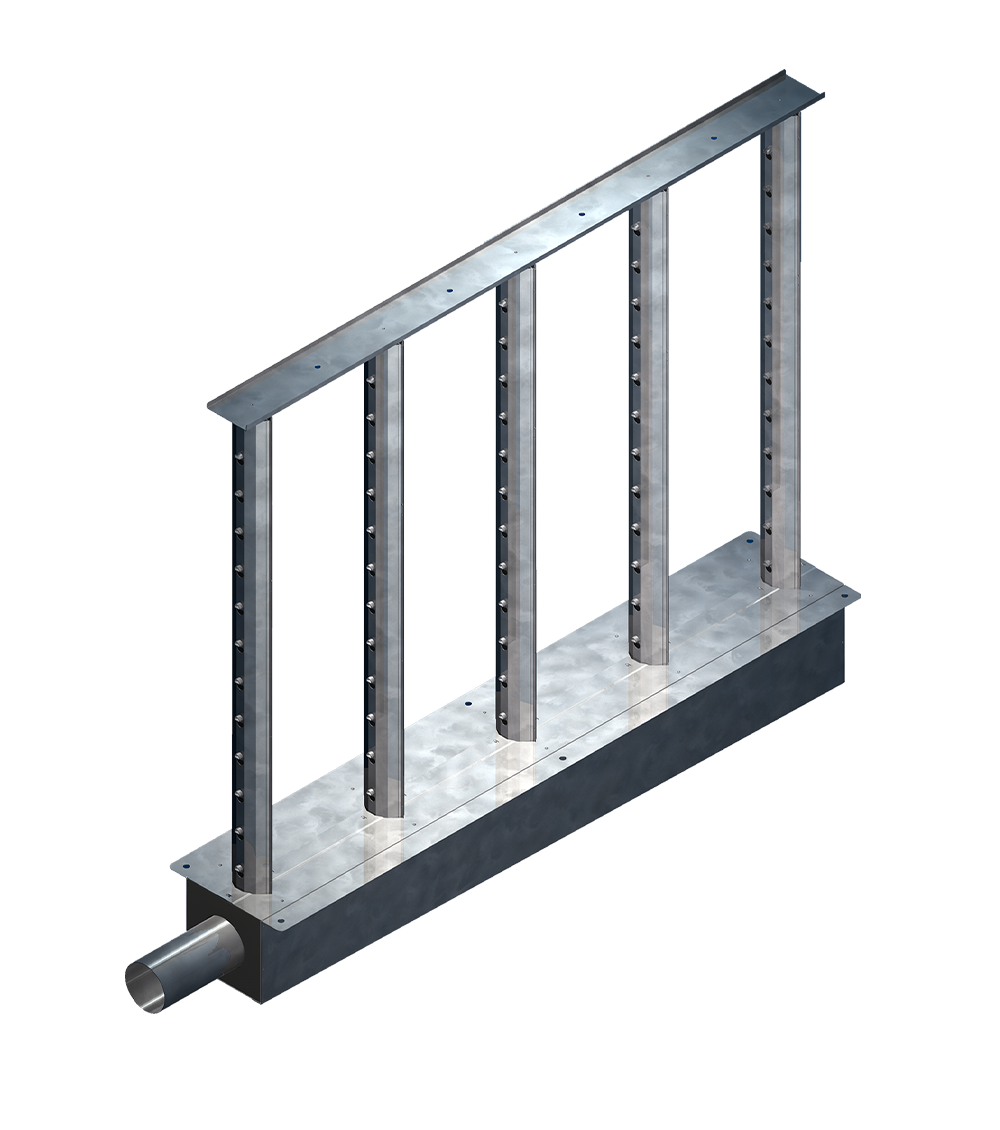

In-Duct Nozzle Rack

Custom made nozzle rack and droplet separator installed in duct or AHU for precise output and the mist absorption. Single pump unit can supply multiple ducts with or without remote valve panel (RVP).

Advantages of In-Duct Nozzle Rack:

Up to 6 stage valves to ensure precise humidity output
Spray contained in duct, no ceiling height limitation
