SKS4 - Steam to Steam Humidifier

Overview

Capacities from 8-670kg/hr of steam
Boiler steam pressure from 34.5 to 689 kPa
Stainless steel 316 or copper heat exchanger
Comprehensive scale management system cleans within minutes

Steam Distribution

In-duct distribution systems
Multi-Steam SD/HD and S.A.M. systems available
Custom-made to fit duct or AHU

Outdoor Unit

Fully insulated
Easy installation
Anti-freeze and overheat protection

Designed specifically for the SK4 series

One controller
One menu across humidifier types
Provides consistency and ease of use

Sensors and Controls

Higher energy conservation
Lower costs and higher values
Seamless integration and interoperability

Overview
Steam Distribution
Outdoor Unit
Integrated,
Multi-Platform Controller
Humidity Sensors and Controls

Tech Time

Brochure
SKS4 Brochure (50Hz)

SKS4 - Overview

The SKS4 humidifier provides chemical free steam by using an on-site central boiler or steam generating station as a heat source. The raw steam under pressure from the boiler provides the energy to produce clean, sterilized steam through a heat exchanger.

Environmentally friendly
Optimize the use of boiling water – no unnecessary drain!
Ease of maintenance with comprehensive scale management system

Advantages of Steam to Steam Humidifiers

Capacities from 8 - 670 kg/hr of steam
Copper (for HTHW) or stainless steel (for raw steam) heat exchangers
Ease of servicing: clean and re-install within minutes
Patent-pending water level detection system using 2 sensor technologies

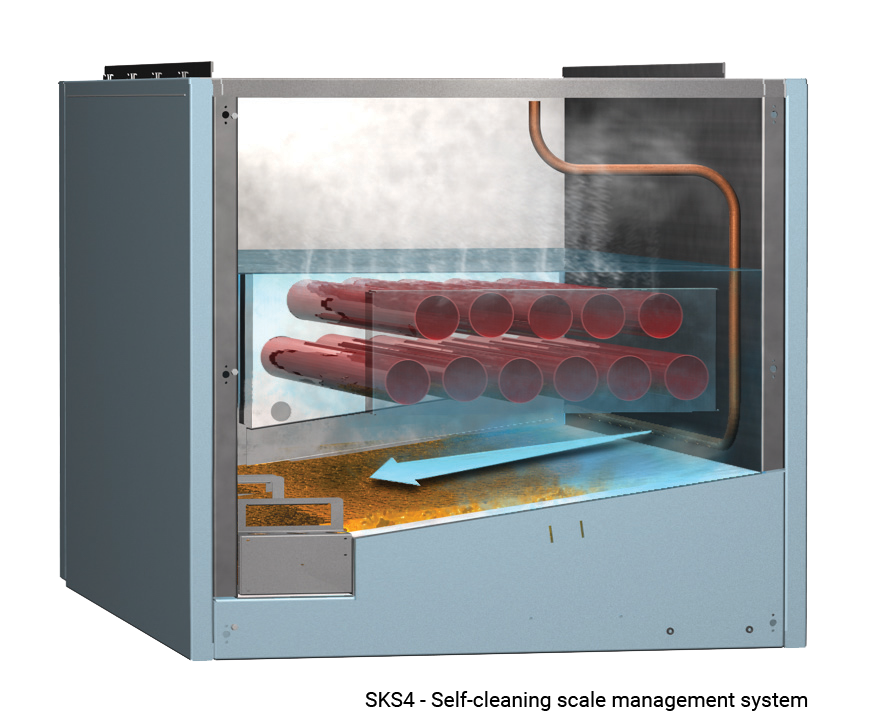

Comprehensive scale management system
For Multi-Steam and SAM in-duct distribution systems
Available with BACnet MS/TP or Modbus communication
Optional ethernet module for BACnet IP or Modbus IP, and web services
Patented Anti-Foaming Energy Conservation (AFEC) System
Drain water tempered to below 60°C
Uses either domestic, RO or DI water
Now available with an OSHPD option – the SKS4 meets the requirements of OSHPD Special Seismic Certification Preapproval (OSP)
Supplied with Neptronic actuated globe valve, giving full modulation control of low pressure steam

Linear Actuated Globe Valve

The Neptronic electric linear actuated globe valve provides a modulating output for close humidity control. Each unit comprises a linear actuator that is directly coupled to the valve. The SKS4 sends an analog control signal to the actuator to open and close in proportion to the demand of steam.

Electronic feedback from the actuator allows the SKS4 controller to monitor the exact position of the valve
Failsafe feature closes the valve when there is a power failure
Delivers a maximum of 450 Newtons force at rated voltage
Sizing ranges from 15mm to 50mm.

For low pressure steam applications, it is necessary to shield the actuator from heat generated by the valve. This is accomplished by a factory installed adapter kit, the DDSTM.

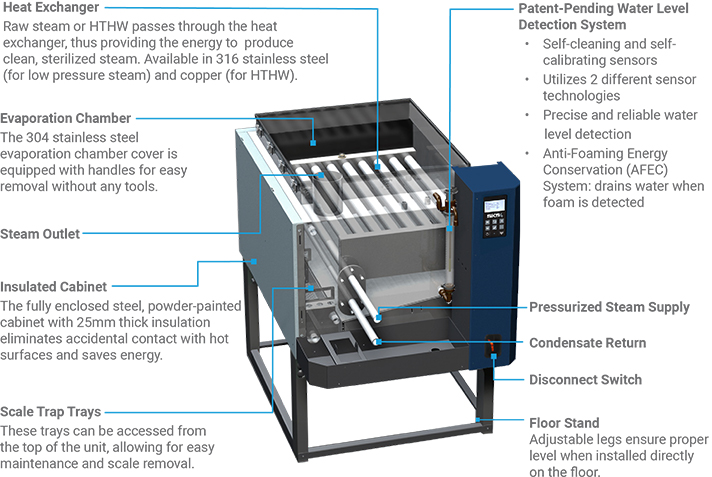

System Overview

In-Duct Distribution

For Multi-Steam^TM SD/HD and S.A.M. in-duct distribution systems.

Efficient and economical, S.A.M. and S.A.M. E2 systems are suitable for installations where absorption distances are short (less than 1500mm) and/or low/restricted duct temperatures are in effect
Custom-made to the dimensions of the duct or AHU, the Multi‑Steam™ SD/HD systems are used at critical locations within the air handling systems where absorption distances are extremely short (less than 900mm) or where low air duct temperatures are present
For more information on our Steam Distrbution Systems, please click here

SAM E2

Multi-Steam

Operation in all climates

Hinged doors provide full access (serviceability) from the front, back and top of unit
Fully insulated and constructed from heavy duty steel
Stainless steel bottom drip pan
Zinc primer and polyurethane powder coating for resistance against scratches and corrosion
Built-in anti-freeze and overheat protection
Easy installation on a roof curb, stand or slab

The SK Controller is configured specifically for your SKE4, SKG4 or SKS4 Humidifier.

User-friendly interface consisting of a menu driven 128 x 64 LCD with 8 function buttons for faster configuration and operation
User rights management allows for menu to display only functions available to the category of user logged in
Quick Config menu allows for faster and easier installation, by displaying only the most commonly used functions and configurations
Independent scheduling system for unit operation and drain cycle, configurable via the menu or the BACnet communication interface
In-field firmware upgradeable via SD card, USB or BACnet
Simple viewing and exporting of trending log and alarm log

Optional Features

The selectable BACnet MS/TP or Modbus communication interface allows access to over 75 objects/registers for integration with a BMS and IoT(Internet of Things)
Ethernet Module
- Bacnet IP or Modbus IP
- Web services make it possible to perform humidifier configurations, remote diagnostics and many more functions from any location
