SKRO

Reverse Osmosis System
  • Various capacities to serve the entire Neptronic humidifier line-up, from small capacities for SKE4 to the largest SKH4 system.
  • Dedicated controller equipped with digital sensors to monitor operation.
  • No manual balancing required during commissioning for quick and easy start-up.
Reverse Osmosis System

The SKRO is ideal to size with Neptronic’s humidifiers based on factors such as:

  • Minimum temperature in the year
  • Type of equipment used and tank size
  • Duty cycle
Reverse Osmosis System
  • User-friendly, menu-driven interface for faster configuration and operation
  • Customizable menu access for End Users, Technicians, Installers, and Integrators
Reverse Osmosis System
  • Capacities at up to 4510 lbs/hr
  • Tailored for Neptronic adiabatic and isothermal humidifiers
  • Adaptable storage and pretreatment configurations
Reverse Osmosis System
  • Capacities at up to 4510 lbs/hr
  • Tailored for Neptronic adiabatic and isothermal humidifiers
  • Adaptable storage and pretreatment configurations
  • Overview

  • Nomenclature

  • Integrated
    Multi-Platform Controller

  • Reverse Osmosis Systems

  • RO System Accessories

SKRO - Overview

Overview

Optimize Humidification with RO Filtration

The Neptronic SKRO is a scalable reverse osmosis water treatment system tailored for adiabetic and isothermal Neptronic humidifiers. It is designed to purify water for atomizing applications, and eliminate maintenance on electric, gas, and steam to steam humidifiers. The Neptronic SKRO purifies water using a semi-permeable membrane to remove impurities, dissolved solids, salts, bacteria, and viruses. By applying pressure, water is forced through one or multiple membranes, ensuring exceptionally pure water through advanced filtration.

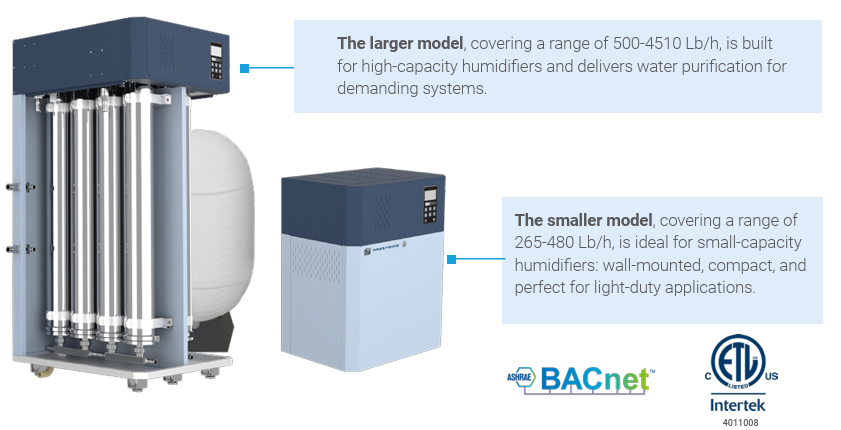

Designed to fully support Neptronic’s humidification range, the SKRO is available in multiple capacities:

Why you need our SKRO?

The Neptronic SKRO Reverse Osmosis system is your best defense against scale buildup and high maintenance costs. By removing nearly all of the dissolved minerals, it protects your humidifier, ensures cleaner steam, and boosts energy efficiency. Designed to integrate seamlessly with Neptronic humidifiers, the SKRO keeps your equipment running smoothly and your indoor air at its best. Less cleaning, more performance-just pure, smart humidity control.

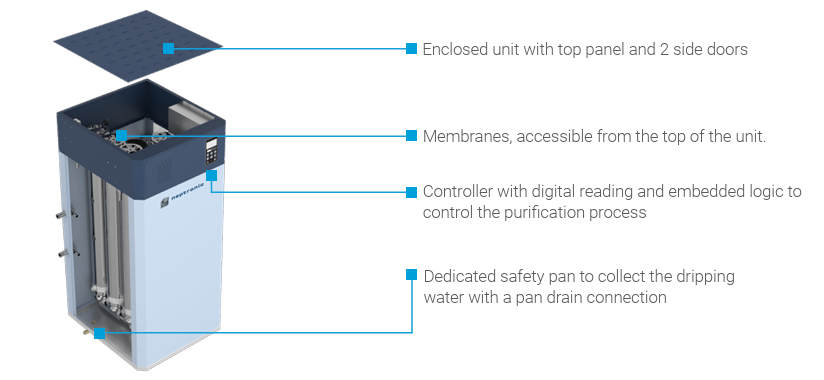

System Overview

Key Features

  • Large capacity range of 265-4510 Lb/h.
  • User-friendly interface with LCD display to simplify operation and monitoring.
  • Advanced digital sensors to track pressure, water quality (TDS), and flow rates for consistent performance in real time.
  • Real-time clock and SD card/USB key for trending, scheduling, and historical tracking.
  • Easy upgrades and enhanced functionality via USB updates.
  • Dedicated controller to eliminate the need for manual adjustments.
  • Top and side access for quick and easy maintenance.
  • The enclosed cabinet with a built-in pan drain ensures a clean and secure installation.
  • BACnet and Modbus connectivity for smooth integration with building management systems.
  • Adaptable to different water conditions.

Nomenclature

N 046 B E
Frequency Pure water capacity: Membrane type: Voltage:
N = 60Hz - L/h GPD A – Low Energy
B – Extra Low Energy
C – Calcium Tolerant
D – Chlorine Tolerant
A = 120V / 1ph
B = 208V / 1ph
C = 220-240V / 1ph
D = 208V / 3ph
E = 220-240V / 3ph
F = 400V / 3ph
G= 480V / 3ph
H= 600V / 3ph
012 121 760
022 220 1460
023 230 1470
046 460 2900
091 910 5770
137 1370 8690
205 2050 13000

Capacities

Model Capacity of pure water @ 50°F
L/h lb/h
SKRO-N012x 120 265
SKRO-N022x 220 480
SKRO-N023x 230 500
SKRO-N046x 460 1010
SKRO-N091x 910 2000
SKRO-N137x 1370 3010
SKRO-N205x 2050 4510

SIZING

SKRO Model SKE Model SKG Model SKH4 Model SKH4 SS Model
SKRON012 SKE4-S - - -
SKE4-M
SKRON022 SKE4-L SKG4-1 Module SKH4-N021B -
SKE4-XL
SKRON023 - SKG4-1 Module SKH4-N021B -
SKRON046 - SKG4-2 Modules SKH4-N050B SKH4-N062S
SKRON091 SKG4-3 Modules SKH4-N100B SKH4-N140S
SKRON137 SKG4-4 Modules SKH4-N185B SKH4-N225S
SKRON205 - - SKH4-N280B SKH4-N280S

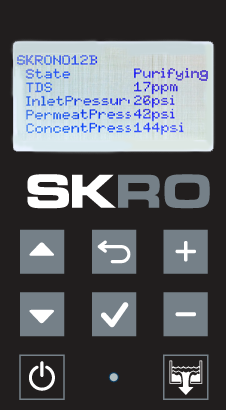

Integrated Multi-Platform Controller

The SKRO controller is configured specifically for your reverse osmosis needs.

  • User-friendly, menu-driven interface on a 128 x 64 LCD with 8 function buttons for faster configuration and operation
  • Customizable menu access for End Users, Technicians, Installers, and Integrators
  • Independent scheduling system for unit operation and drain cycle configurable via the menu or the BACnet communication interface
  • Firmware updates via SD card, USB, or BACnet
  • View and export trending and alarm logs with ease

Neptronic Reverse Osmosis Systems ensure maintenance-free operation of our isothermal humidifiers (SKE4, SKG4, and SKS4) and are an integrated component of our adiabatic high-pressure spray SKH4.

Neptronic WP series reverse osmosis systems are available with an array of storage and pre-treatment options. We understand every installation is unique, and our experts can help tailor a water treatment approach to a humidification project.

  • Available in capacities up to 4500 lbs/hr, and voltages ranging from 120/1-ph to 600/3-ph
  • Activated carbon, softeners, and anti-scale injection pretreatment
  • Painted galvanized steel closed enclosure and stainless-steel membrane vessels
  • Pressurized tank to prevent outside contamination
  • Humidifier functionality can engage RO during offseason to prevent stagnation.

Advantages of using water treatment systems for Neptronic humidifiers

  • Eliminate maintenance on multiple humidifiers with single RO system.
  • Reduce frequency of drain cycles to improve uptime for critical operations
  • Prevent foaming in humidifier tanks

System Overview

  • Digital pressure and flow gauges
  • Low pressure pump protection
  • Integrated pressure controls for pressurized accumulation tanks

Pretreatment

Several accessories are required to complete the water treatment system. In most water qualities, a softener or antiscale injection is required to pretreat the water upstream of the RO system. This ensures RO membranes do not scale over. Large capacity activated carbon filters prevent chlorine from oxidizing reverse osmosis membranes.

  • Single and twin softeners
  • Antiscale Injection
  • Standalone Activated carbon tanks

Storage

Storage is also a key component of the water treatment system. There should be enough buffer to ensure humidifier boiling chambers can fill rapidly.

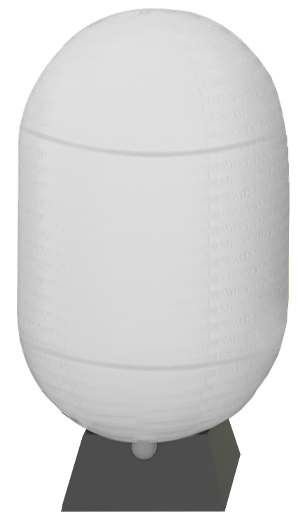

  • Pressurized accumulators from 15 to 120 gallon
  • UV Post Treatment
