System Architecture
The Neptronic IMS system architecture, integrated with the Fan Coil App, utilizes the scalability and flexibility of the Edge device combined with the proven reliability of Neptronic controllers for Fan Coil unit applications.
Neptronic Application-Specific Controllers
These controllers are crafted to manage Fan Coils and auxiliary systems, such as heaters and humidifiers. They are field-tested and integral to facility operations and come with preloaded algorithms for diverse Fan Coil applications, including 2-pipe/4-pipe systems, cooling with reheat, and humidification or dehumidification. Installers benefit from broad compatibility with various hardware types, including the EFCB, TUUB, and TUCB series, and seamless integration with other facility equipment, like humidifiers, heaters, and variable frequency drives.
Neptronic Edge Device

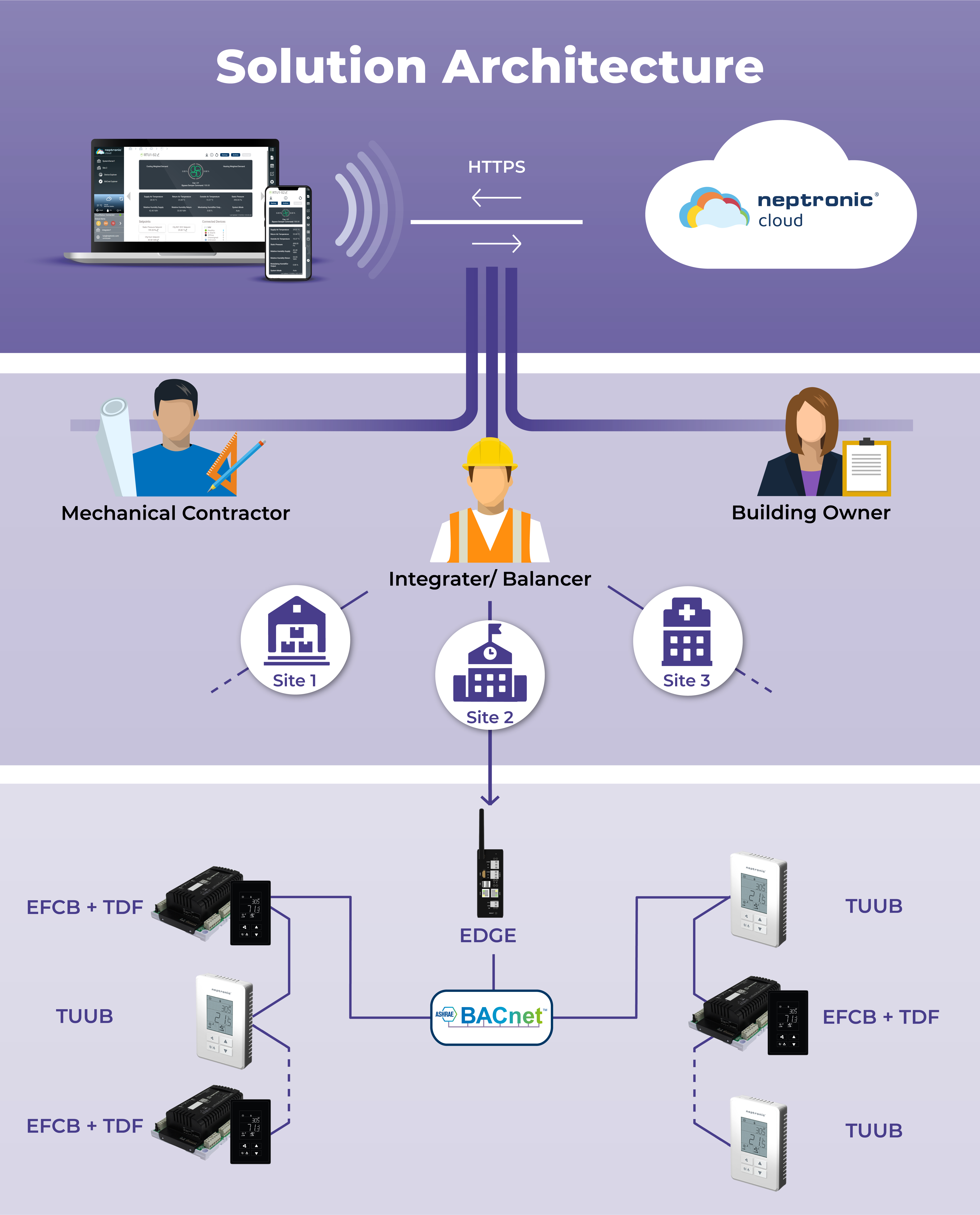

Central to this architecture is the Edge device, which supports up to 64 devices across two RS-485 networks, significantly lowering installation costs. The Edge device offers flexibility in configuration, whether managing one loop across two floors with up to 32 controllers per floor, or two loops on a single floor, each with up to 32 controllers. The system architecture diagram demonstrates this adaptability, highlighting the Fan Coil App's capability to meet various building layouts and requirements.
Site Manager
This component oversees multiple Edge devices and ensures a secure connection to the optional cloud, providing a range of hosted services to enhance functionality and performance.
Together, these components deliver efficient facility management and robust connectivity to cloud-based services, optimizing overall system performance.
