System Architecture
The Rooftop Zoning App is an integral component of the IMS eco-system, combining the scalability of the Edge device with the reliability of Neptronic rooftop controllers, VAV controllers, and peripherals to deliver a robust solution that can work on the cloud, standalone or on a local IT network.
Neptronic Application-Specific Controllers:
These controllers, designed for rooftop units, VAV terminal units with reheat, humidifiers, and other peripherals,
are field-tested and crucial for facility operations. They come preloaded with versatile algorithms for efficient
management of rooftop units and heat pumps.
The system is compatible with various hardware, including the CMMB-ZB, EVCB, and TROB Neptronic controller series, and integrates seamlessly with other facility equipment for a comprehensive management solution
Neptronic Edge device:

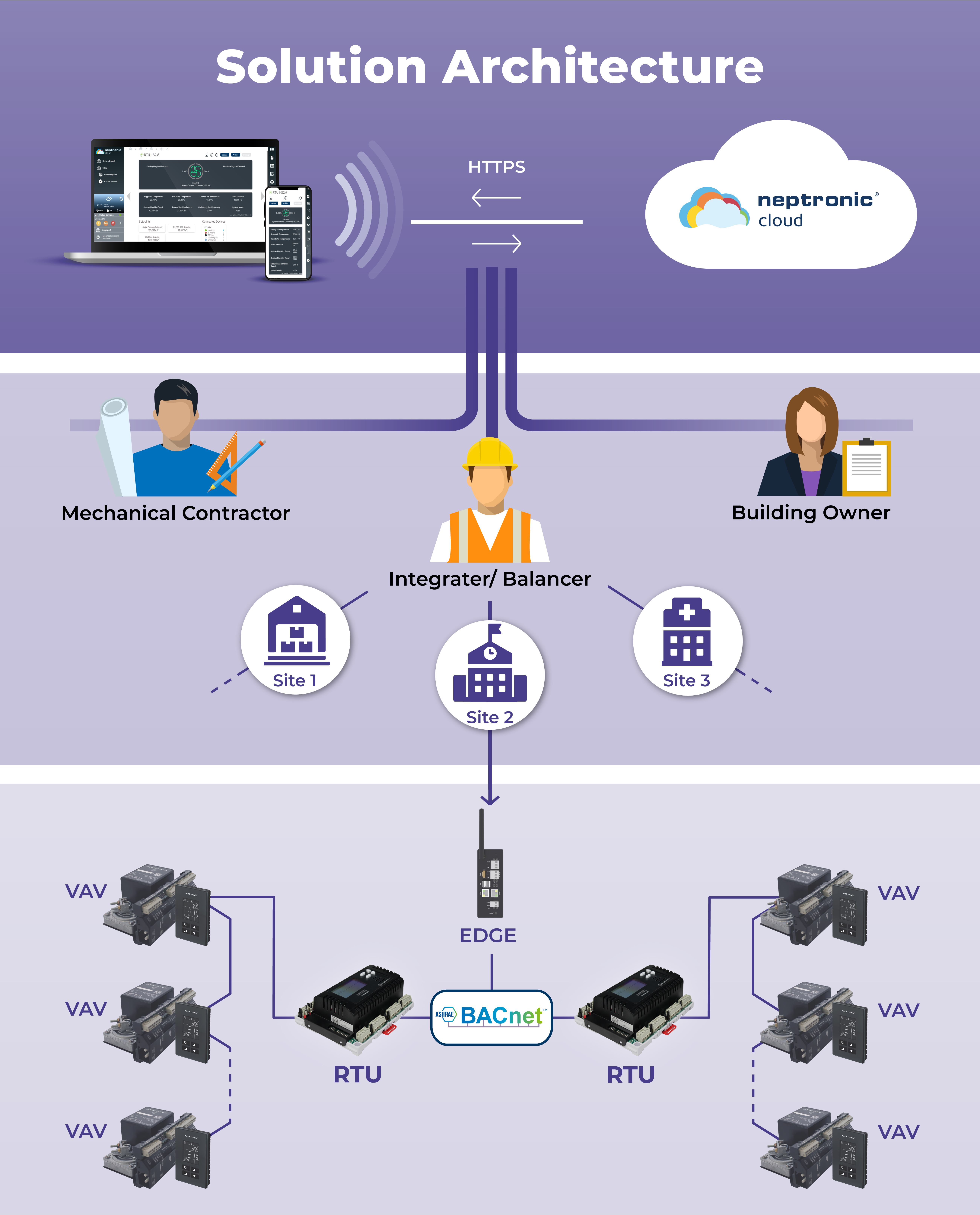

The Edge device is central to this architecture and supports up to 64 devices across two RS-485 networks, significantly lowering installation costs. Its flexible configuration options and adaptability are illustrated in the system architecture diagram, showcasing its ability to meet diverse building layouts and requirements.
Site Manager:
This component oversees multiple Edge devices and provides a secure connection to optional cloud services,
offering a comprehensive suite of hosted services for enhanced functionality and performance.
Together, these components ensure efficient facility management, seamless integration, and robust connectivity to cloud-based services, enhancing overall system performance.
