Hardware & Peripherals

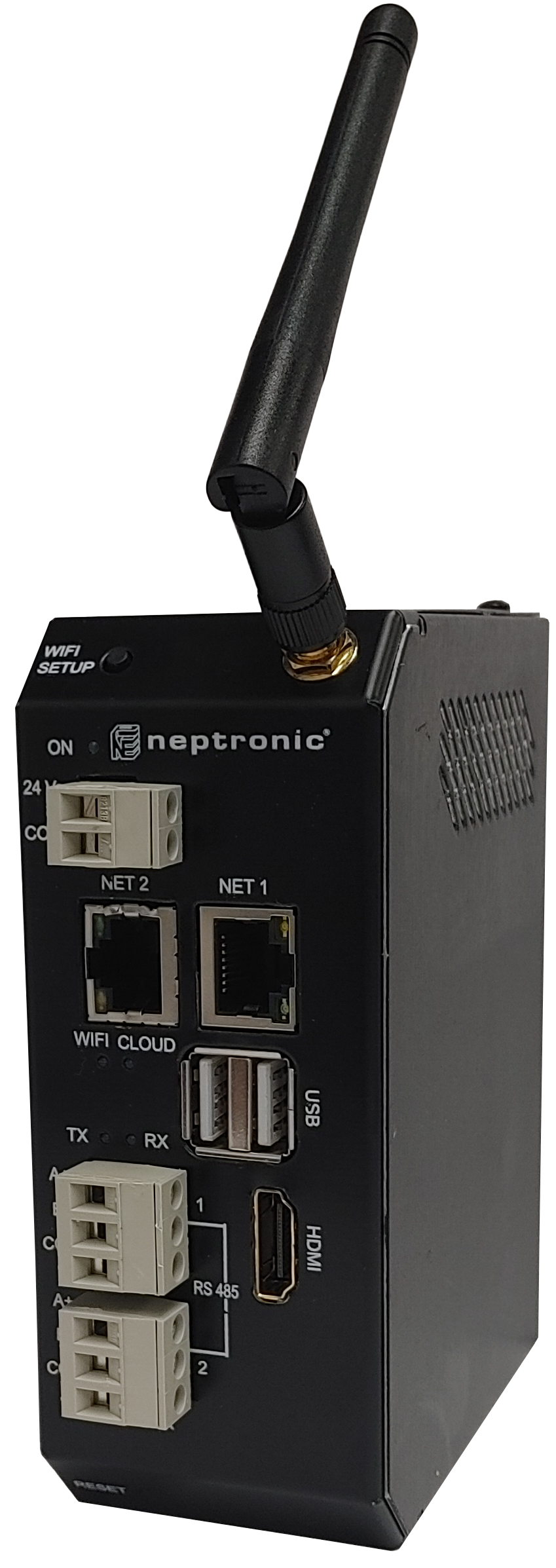

Edge
-
Supports BACnet MSTP and BACnet IP natively at the Edge
-
Communicates with the Cloud using industry standard security protocols
-
Scalable from a single site to a portfolio with multi-user and multi-site support

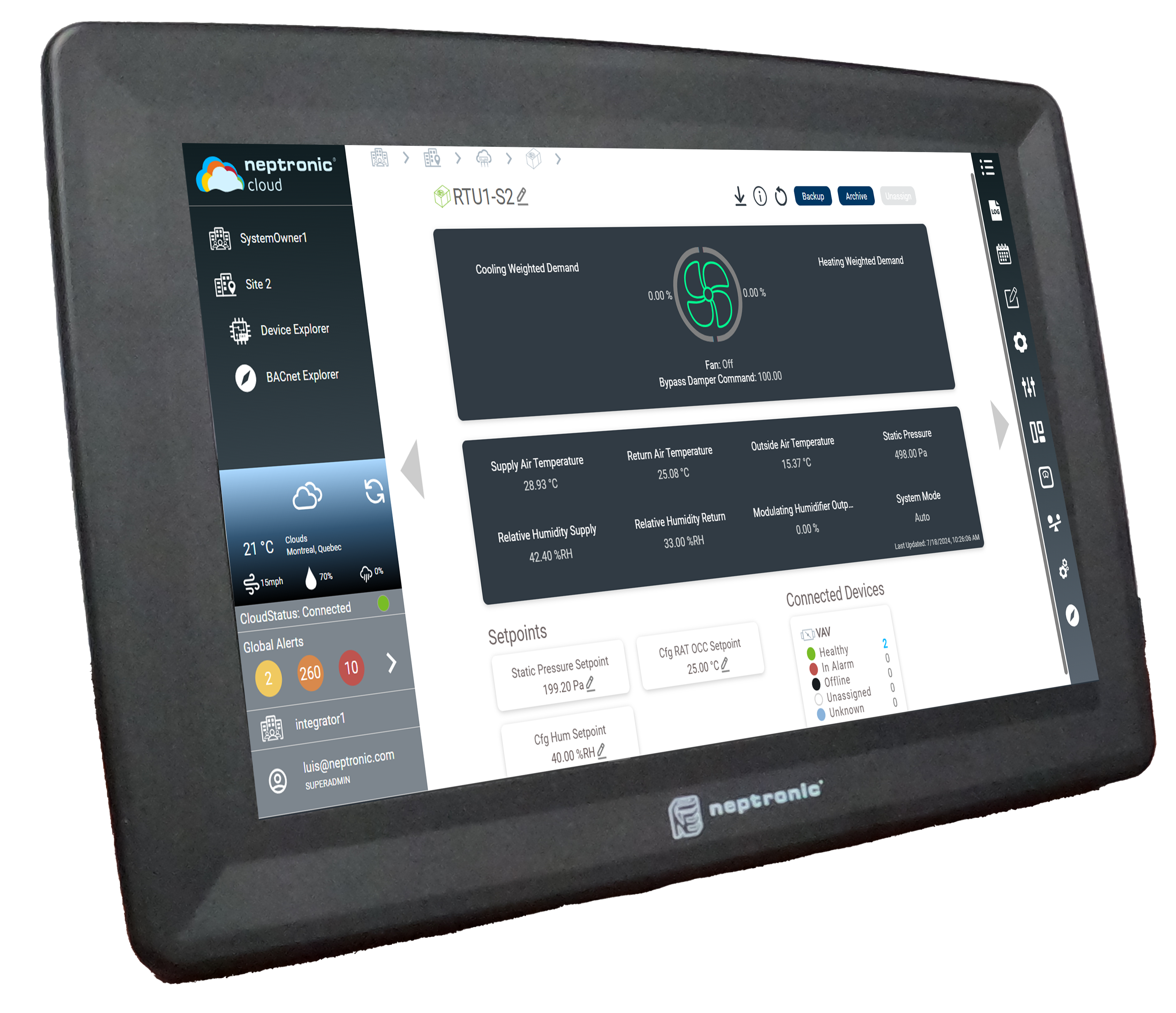

Touch Screen
-
Custom built IPS Capacitive Touchscreen on ARM processor
-
Standard offering of 10.1” display with 1280x800 resolution
-
Supports Modbus RTU or BACnet MSTP with on-board RS-485 ports
-
Onboard Ethernet ports & Wi-Fi support options
-
Panel or Remote mount options
Control Panel
-
Neptronic manufactures custom built control panels compliant to UL508 requirements
-
Numerous options to select the type of material and NEMA/IP ratings
-
Panels are custom built to support multiple power ratings to suit the needs of the project

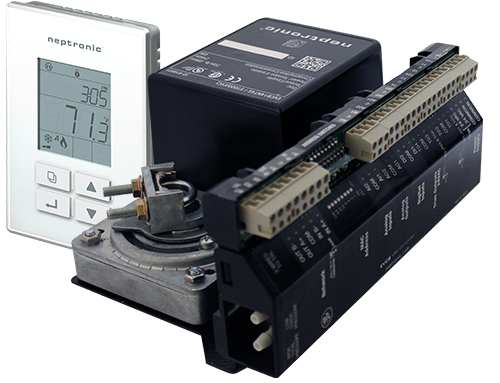

EVCB – VAV Unit Controller Series
-
Pressure independent and dependent systems
-
Integrated 8Nm Actuator or optional external actuator
-
Supports multiple control sequences for cooling, heating, reheat, changeover, fan powered box, perimeter reheat among others
-
On-board IO's to monitor and control field peripherals such as duct sensors, fresh air dampers, heaters and baseboards.
-
IAQ control sequences

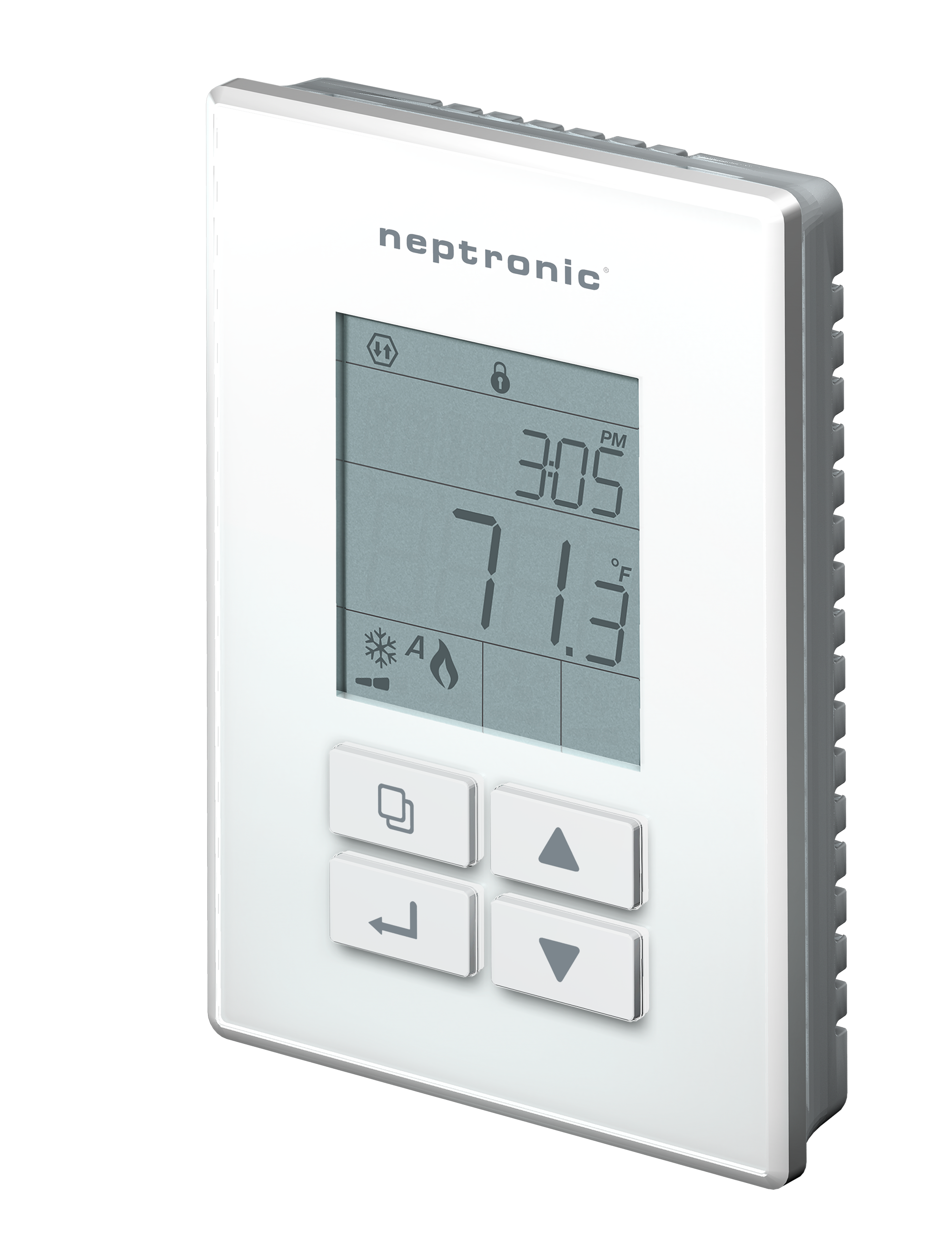

TDU Thermostats
-
Supports multiple on-board Temp, RH, CO2, VOC and Occupancy sensors as options
-
Doubles as a tool for to commission, balance and troubleshoot the system
-
Standard button or capacitive touch options

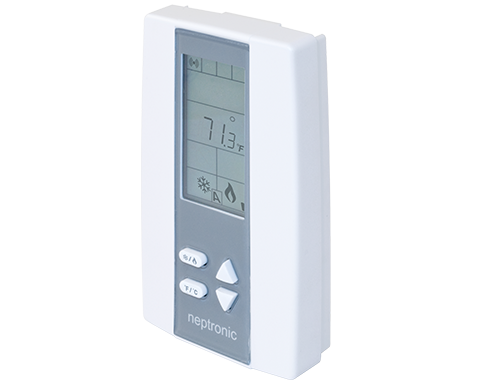

Wall Mount Controller TROB
-
Used predominantly in control of bypass VAV’s and auxiliary equipment operating independently such as baseboards and/or duct heaters, among other applications

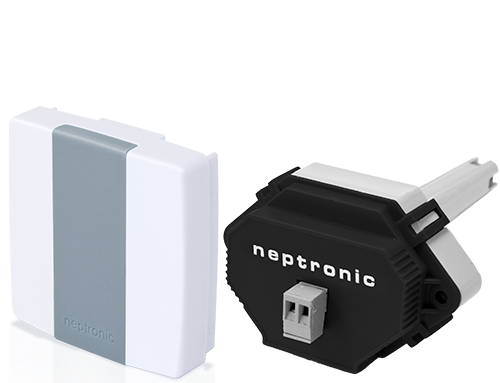

Sensors and Peripherals
-
Air side sensors for Temperature, RH, Static Pressure

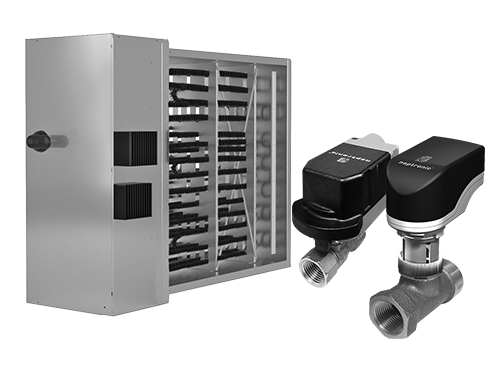

Equipment
-
Duct heaters, baseboards and other peripheral equipment to achieve and maintain the operation and occupational safety requirements of the facility.
